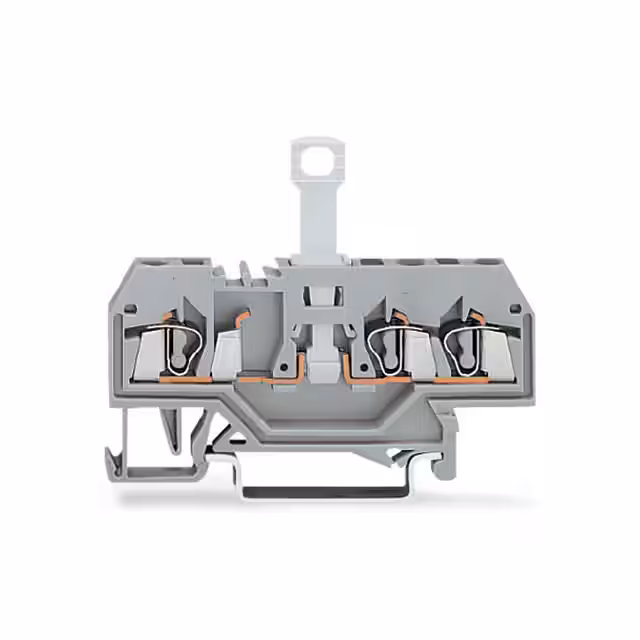

280-683

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Disconnect Type :

Disconnect Tab

Nominal voltage :

400V

Packaging :

Box

Material Flammability Rating :

UL94 V-0

Cross section (inflexible) (max.) :

2.50mm²

Number of Positions/Contacts :

5

Contamination level :

3

Note :

n/a

Voltage Rating :

400 V

Stripping length (max.) :

9mm

AWG max. :

14

Flammability Rating :

UL94 V-0

Number of Positions :

3

Clamp width :

5mm

Manufacturer part # :

280-683

Height :

52.5 mm

Connection :

Pull spring

Cross section (flexible) (max.) :

2.50mm²

Manufacturer :

Wago

PPAP :

No

Mounting Type :

DIN Rail

RoHS :

Compliant

Approvals :

CSA, UR

Current - IEC :

10 A

No. of rows :

1

Wire/Cable Gauge :

12 AWG

Cross section (inflexible) (min.) :

0.08mm²

Nominal current - rounded value :

10A

Product Status :

Active

Termination Method :

Clamp

Nominal current :

10A

Dim :

(W x H) 5 mm x 52.50 mm

Termination Style :

Push In, Spring

Industrial packaging :

yes

EU RoHS :

Compliant

Features :

+ separator

Current Rating :

10 A

ECCN (US) :

EAR99

Stripping Length :

8mm ~ 9mm

Series :

280

Fuse Type :

-

Automotive :

No

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (flexible) (min.) :

0.08mm²

Number of Circuits :

1

Wire Gauge or Range - AWG :

12-28 AWG

Voltage - IEC :

400V

Min. stripping length :

8mm

Terminal - Width :

5.0mm

HTS :

8536.90.40.00

Number of Pins :

3

AWG (min.) :

28

Number of Levels :

Triple

Number of Rows :

1

Type :

Disconnect Block

Package :

Box

Pins per row :

3

Width :

5 mm

Configuration :

L

Shell Material :

PA

Wire Gauge or Range - mm² :

0.08-2.5mm²

Shell Size :

-

Voltage - UL :

-

Content :

50pc(s)

Gender :

Female/Male

Color :

Grey
