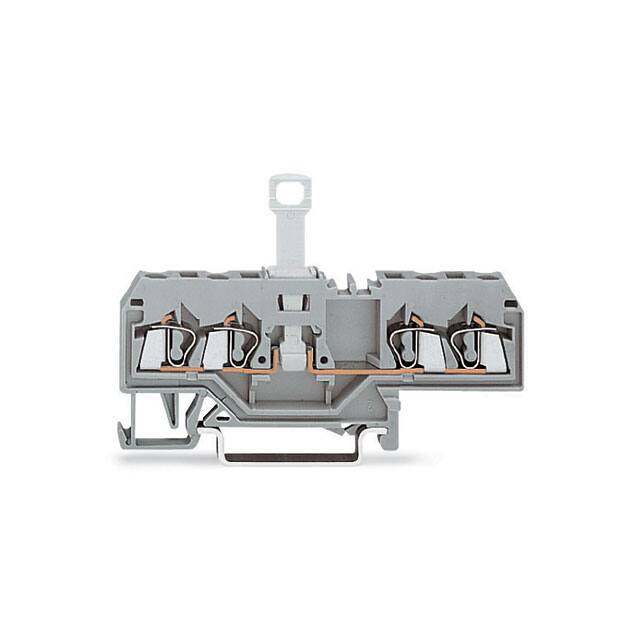

280-685

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Gender :

Female/Male

Wire Gauge or Range - AWG :

12-28 AWG

Manufacturer :

Wago

Nominal voltage :

400V

PPAP :

No

Mounting Type :

DIN Rail

Contamination level :

3

Industrial packaging :

yes

Maximum Voltage Rating :

400V

Cross section (inflexible) (max.) :

2.50mm²

Features :

+ separator

EU RoHS :

Compliant

AWG max. :

14

Min. stripping length :

8mm

HTS :

8536.90.40.00

Number of Pins :

4

Connection :

Pull spring

Stripping length (max.) :

9mm

Maximum Operating Temperature (°C) :

105

Current Rating :

10 A

Disconnect Type :

Disconnect Tab

Material Flammability Rating :

UL94 V-0

Content :

50pc(s)

Connectable conductor cross section solid-core :

0.08 - 2.5

Manufacturer part # :

280-685

Shell Material :

PA

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Shell Size :

-

Number of Positions/Contacts :

5

Cross section (flexible) (min.) :

0.08mm²

AWG (min.) :

28

Product Status :

Active

Maximum Current Rating (A) :

10

Note :

n/a

Mounting :

DIN Rail

Number of Circuits :

1

Type :

Disconnect Terminal Block

Termination Method :

Spring Clamp

Housing Color :

Gray

Minimum Operating Temperature (°C) :

-60

Color :

Gray

RoHS :

yes

Width :

5mm

Series :

WINSTA MIDI

Voltage - IEC :

400V

Pins per row :

4

Number of Rows :

4

Wire Gauge or Range - mm² :

0.08-2.5mm²

Dim :

(W x H) 5 mm x 52.50 mm

Fuse Type :

-

Voltage - UL :

-

Automotive :

No

Inflammability class of insulation material according to with UL94 :

V0

Rated current In :

10

Configuration :

L

Current - IEC :

10 A

Cross section (flexible) (max.) :

2.50mm²

Nominal current :

10A

Terminal - Width :

5.0mm

Nominal current - rounded value :

10A

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (min.) :

0.08mm²

Stripping Length :

8mm ~ 9mm

ECCN (US) :

EAR99

No. of rows :

1

Number of Contacts :

4

Number of Levels :

1

Termination Style :

Push In, Spring

Connectable conductor cross section multi-wired :

0.08 - 2.5

Flammability Rating :

UL94 V-0

Clamp width :

5mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Depth :

52.5

Height :

52.50mm

Number of Positions :

4

Length :

75
