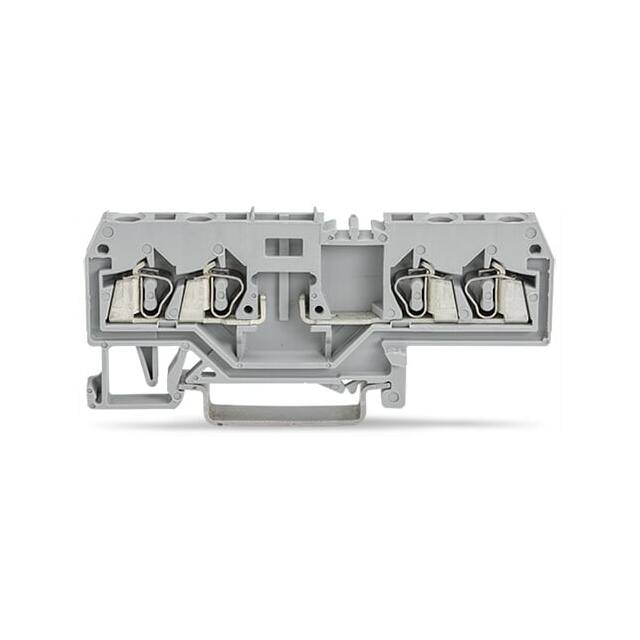

280-686

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Contamination level :

3

Number of Pins :

4

Shell Size :

-

Mounting Type :

DIN Rail

Termination Style :

Push In, Spring

RoHS :

Non-Compliant

Nominal current - rounded value :

10A

Industrial packaging :

yes

Current - IEC :

10 A

Voltage - UL :

-

Pins per row :

4

Disconnect Type :

-

Height :

28 mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connection :

Pull spring

Series :

WINSTA MIDI

Number of Contacts :

4

Number of Levels :

1

Number of Rows :

4

Length :

75

Connectable conductor cross section solid-core :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

Manufacturer :

Wago

Cross section (flexible) (min.) :

0.08mm²

Gender :

Female/Male

Clamp width :

5mm

Color :

Grey

Cross section (inflexible) (max.) :

2.50mm²

Number of Positions :

4

Fuse Type :

-

PPAP :

No

Termination Method :

Spring Clamp

Note :

n/a

Housing Color :

Gray

Min. stripping length :

8mm

Connectable conductor cross section multi-wired :

0.08 - 2.5

EU RoHS :

Compliant

HTS :

8536.90.40.00

Maximum Operating Temperature (°C) :

105

Product Status :

Active

Flammability Rating :

UL94 V-0

Content :

100pc(s)

AWG max. :

14

Inflammability class of insulation material according to with UL94 :

V0

Automotive :

No

Features :

-

Width :

5 mm

Voltage - IEC :

400V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Manufacturer part # :

280-686

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Mounting :

DIN Rail

Current Rating :

10 A

Configuration :

L

ECCN (US) :

EAR99

Terminal - Width :

5.0mm

Number of Positions/Contacts :

5

Dim :

(W x H) 5 mm x 28 mm

Nominal current :

10A

Nominal voltage :

400V

Material Flammability Rating :

UL94 V-0

Package :

Box

No. of rows :

1

AWG (min.) :

28

Stripping length (max.) :

9mm

Rated current In :

10

Cross section (inflexible) (min.) :

0.08mm²

Maximum Current Rating (A) :

10

Cross section (flexible) (max.) :

2.50mm²

Number of Circuits :

1

Type :

Terminal Block

Shell Material :

PA

Depth :

28

Maximum Voltage Rating :

400V

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - AWG :

12-28 AWG
