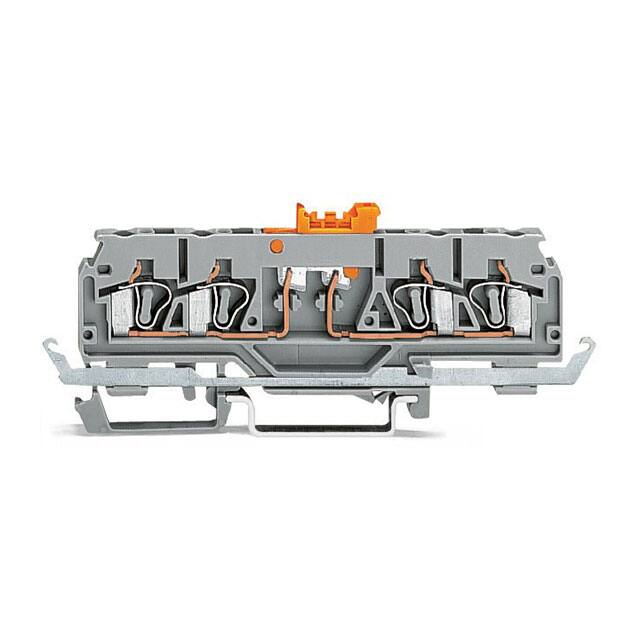

280-875

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Type :

Disconnect and Test Disconnect Terminal Block

Note :

n/a

Approvals :

CSA, UR

Terminal - Width :

5.0mm

Number of Positions :

4

Fuse Type :

-

Voltage - IEC :

250V

Industrial packaging :

yes

HTS :

8536.69.40.51

Series :

WINSTA MIDI

Pins per row :

4

Features :

+ swivelling cutter,+ test option

Length :

101

Mounting :

DIN Rail

AWG max. :

14

Material Flammability Rating :

UL94 V-0

No. of rows :

1

Number of Positions/Contacts :

3

Termination Style :

Push In, Spring

Disconnect Type :

Switch, Knife

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Dim :

(W x H) 5 mm x 28.50 mm

Manufacturer :

Wago

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Cross section (flexible) (max.) :

2.50mm²

EU RoHS :

Compliant

Voltage - UL :

-

Width :

5mm

Configuration :

L

Nominal current - rounded value :

16A

Number of Contacts :

4

Connectable conductor cross section multi-wired :

0.08 - 2.5

Color :

Gray

Gender :

Male

Content :

50pc(s)

Wire Gauge or Range - AWG :

12-28 AWG

Cross section (inflexible) (max.) :

2.50mm²

Product Status :

Active

Min. stripping length :

8mm

Connection :

Pull spring

Maximum Operating Temperature (°C) :

105

RoHS :

yes

AWG (min.) :

28

Nominal current :

16A

Automotive :

No

Shell Size :

-

Height :

28.50mm

Number of Rows :

4

Cross section (inflexible) (min.) :

0.08mm²

Current - IEC :

16 A

Nominal voltage :

250V

Clamp width :

5mm

Mounting Type :

DIN Rail

Contamination level :

3

Stripping Length :

8mm ~ 9mm

Depth :

28.5

Maximum Current Rating (A) :

16

Wire Gauge or Range - mm² :

0.08-2.5mm²

Maximum Voltage Rating :

250V

Stripping length (max.) :

9mm

PPAP :

No

Number of Levels :

1

Rated current In :

16

Number of Circuits :

1

ECCN (US) :

EAR99

Shell Material :

PA

Housing Color :

Gray

Connectable conductor cross section solid-core :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

Manufacturer part # :

280-875

Cross section (flexible) (min.) :

0.08mm²

Termination Method :

Spring Clamp
