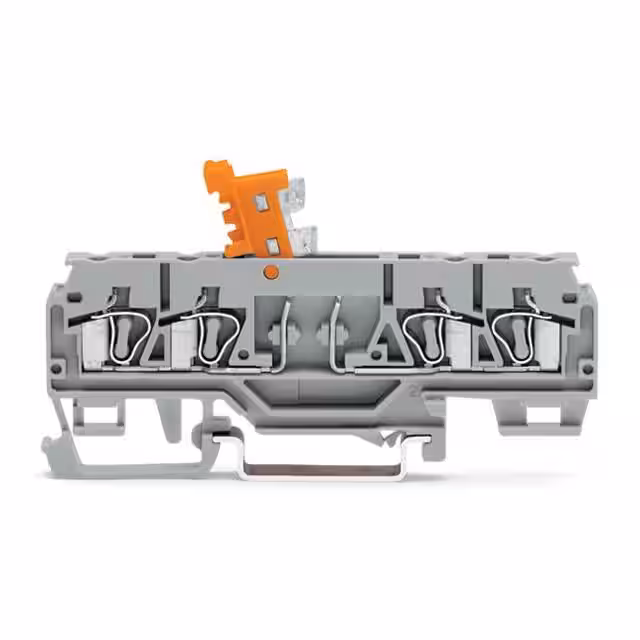

280-883

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

PPAP :

No

Contamination level :

3

Cross section (inflexible) (min.) :

0.08mm²

Series :

WINSTA MIDI

Housing Color :

Orange

Cross section (flexible) (min.) :

0.08mm²

ECCN (US) :

EAR99

Depth :

28.5

Connectable conductor cross section solid-core :

0.08 - 2.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Shell Material :

PA

Number of Positions/Contacts :

3

Package :

Box

Nominal voltage :

400V

Industrial packaging :

yes

Min. stripping length :

8mm

Content :

50pc(s)

AWG (min.) :

28

Type :

Disconnect and Test Disconnect Terminal Block

Wire Gauge or Range - mm² :

0.08-2.5mm²

RoHS :

yes

Connection :

Pull spring

Features :

+ swivelling cutter,+ test option

Length :

89

Color :

Orange

Maximum Voltage Rating :

400V

Manufacturer :

Wago

Nominal current :

16A

Approvals :

CSA, UR

Mounting Type :

DIN Rail

Voltage - UL :

-

Number of Positions :

4

Termination Method :

Spring Clamp

EU RoHS :

Compliant

Number of Contacts :

4

Inflammability class of insulation material according to with UL94 :

V0

Disconnect Type :

Switch, Knife

No. of rows :

1

Termination Style :

Push In, Spring

Note :

n/a

Pins per row :

4

Cross section (inflexible) (max.) :

2.50mm²

Number of Rows :

4

Minimum Operating Temperature (°C) :

-60

Current - IEC :

16 A

Width :

5mm

Shell Size :

-

Material Flammability Rating :

UL94 V-0

Number of Circuits :

1

Maximum Operating Temperature (°C) :

105

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Dim :

(W x H) 5 mm x 28.50 mm

Cross section (flexible) (max.) :

2.50mm²

Maximum Current Rating (A) :

16

HTS :

8536.90.40.00

Manufacturer part # :

280-883

Stripping length (max.) :

9mm

Rated current In :

16

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Gender :

Male

Height :

28.50mm

Stripping Length :

8mm ~ 9mm

Mounting :

DIN Rail

Fuse Type :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

AWG max. :

14

Voltage - IEC :

400V

Nominal current - rounded value :

16A

Clamp width :

5mm

Number of Levels :

1

Automotive :

No

Terminal - Width :

5.0mm

Wire Gauge or Range - AWG :

12-28 AWG

Product Status :

Active
