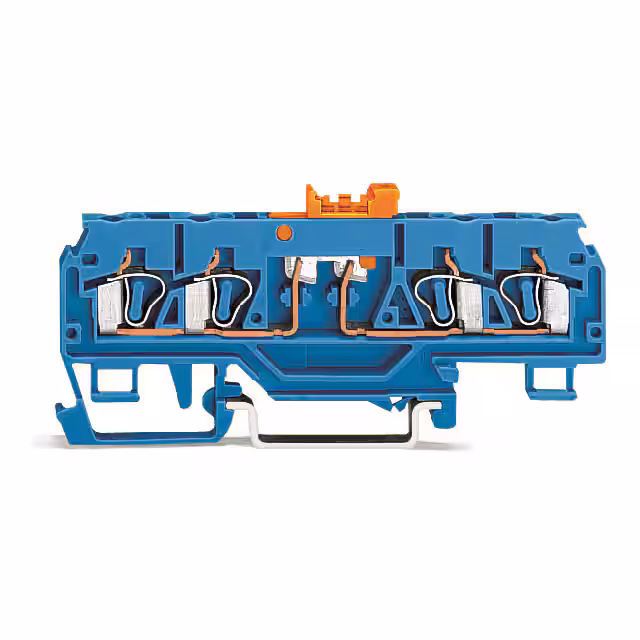

280-885

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Color :

Blue

HTS :

8536.69.40.51

Maximum Current Rating (A) :

16

Number of Positions/Contacts :

3

Voltage - UL :

-

PPAP :

No

Product Status :

Active

Mounting Type :

DIN Rail

Depth :

28.5

Gender :

Male

Maximum Voltage Rating :

400V

Approvals :

CSA, UR

Number of Positions :

4

Type :

Disconnect and Test Disconnect Terminal Block

Length :

89

Terminal - Width :

5.0mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Current - IEC :

16 A

Voltage - IEC :

400V

Wire Gauge or Range - AWG :

12-28 AWG

Inflammability class of insulation material according to with UL94 :

V0

Termination Method :

Spring Clamp

Automotive :

No

Features :

-

Rated current In :

16

Shell Size :

-

Packaging :

Box

Manufacturer :

Wago

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

Termination Style :

Push In, Spring

Connectable conductor cross section multi-wired :

0.08 - 2.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Number of Levels :

1

Shell Material :

PA

Disconnect Type :

Switch, Knife

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Rows :

4

Number of Circuits :

1

Note :

n/a

ECCN (US) :

EAR99

Maximum Operating Temperature (°C) :

105

Number of Contacts :

4

Height :

89

EU RoHS :

Compliant

Fuse Type :

-

Mounting :

DIN Rail

Width :

5

Package :

Box

Housing Color :

Blue

Series :

WINSTA MIDI

Stripping Length :

8mm ~ 9mm

Material Flammability Rating :

UL94 V-0
