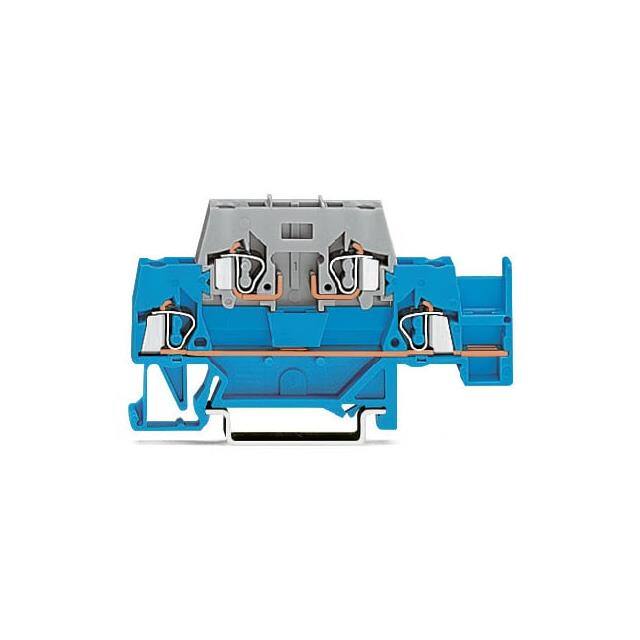

280-891

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Inflammability class of insulation material according to with UL94 :

V0

Nominal voltage :

400V

Content :

50pc(s)

Packaging :

Box

Type :

Double-Level Terminal Block

Gender :

Male

Number of Contacts :

4

Pins per row :

2

Connectable conductor cross section multi-wired :

0.08 - 2.5

Contamination level :

3

Manufacturer part # :

280-891

Nominal current - rounded value :

10A

Cross section (inflexible) (min.) :

0.08mm²

Maximum Current Rating (A) :

10

AWG (min.) :

28

Clamp width :

5mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage - UL :

-

Number of Levels :

2

Shell Size :

-

Product Status :

Active

No. of rows :

2

Number of Positions/Contacts :

3

RoHS :

yes

Wire Gauge or Range - AWG :

12-28 AWG

Number of Circuits :

2

Stripping length (max.) :

9mm

Shell Material :

PA

Mounting Type :

DIN Rail

EU RoHS :

Compliant

Manufacturer :

Wago

Industrial packaging :

yes

Dim :

(W x H) 5 mm x 39.50 mm

ECCN (US) :

EAR99

Connection :

Pull spring

Housing Color :

Gray

Wire Gauge or Range - mm² :

0.08-2.5mm²

Minimum Operating Temperature (°C) :

-60

Package :

Box

Rated current In :

10

Material Flammability Rating :

UL94 V-0

Nominal current :

10A

Stripping Length :

8mm ~ 9mm

Fuse Type :

-

Cross section (flexible) (max.) :

2.50mm²

PPAP :

No

Width :

5mm

Cross section (flexible) (min.) :

0.08mm²

Note :

n/a

Cross section (inflexible) (max.) :

2.50mm²

Terminal - Width :

5.0mm

Length :

74

Configuration :

L

Maximum Operating Temperature (°C) :

105

HTS :

8536.90.40.00

Termination Style :

Push In, Spring

Number of Rows :

2

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Voltage - IEC :

400V

Mounting :

DIN Rail

Connectable conductor cross section solid-core :

0.08 - 2.5

Series :

WINSTA MIDI

Maximum Voltage Rating :

400V

Number of Positions :

4

Current - IEC :

20 A

Features :

-

AWG max. :

12

Approvals :

CSA, UR

Color :

Gray

Height :

39.50mm

Termination Method :

Spring Clamp

Disconnect Type :

-

Automotive :

No

Depth :

39.5

Min. stripping length :

8mm
