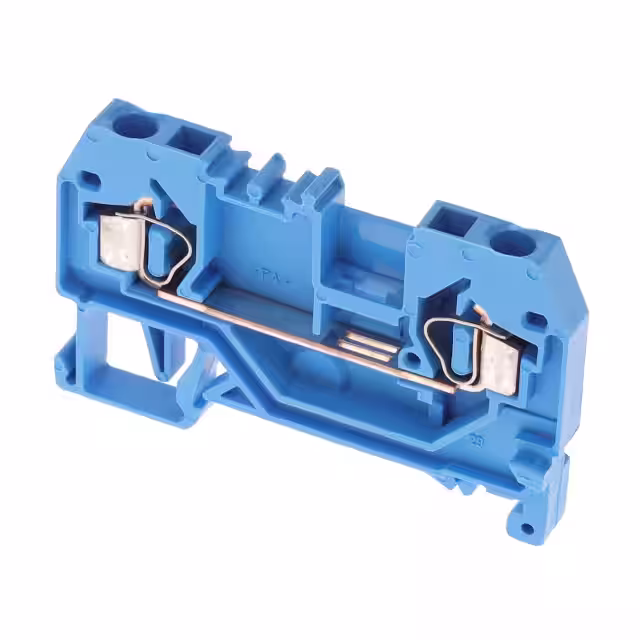

280-904

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Disconnect Type :

-

Current Rating (Max) :

24(A)

No. of rows :

1

Dim :

(W x H) 5 mm x 28 mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Mounting Style :

T DIN RAIL

Features :

Complies with ATEX Ex I standards

Current Rating :

24A

Rated Current :

24A

Depth :

28

Terminal - Width :

5.0mm

Rated current In :

24

Color :

Blue

Type :

Standard Block

AWG max. :

14

Number of Positions/Contacts :

3

AWG (min.) :

28

Nominal current - rounded value :

24A

Rad Hardened :

No

Clamp width :

5mm

Material Flammability Rating :

-

Housing Color :

Blue

Approvals :

CSA, UR

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Rated Voltage :

800V

Termination Method :

Clamp

Number of Levels :

1

Product Height (mm) :

28(mm)

Industrial packaging :

yes

Configuration :

N

Contact Pitch (mm) :

Not Required(mm)

Cross section (inflexible) (min.) :

0.08mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

Cross section (flexible) (max.) :

2.50mm²

Wire Gauge or Range - AWG :

12-28 AWG

Shell Material :

PA

Inflammability class of insulation material according to with UL94 :

V0

Termination Style :

Push In, Spring

Stripping length (max.) :

9mm

Manufacturer :

Wago

Connection :

Pull spring

Connectable conductor cross section multi-wired :

0.08 - 2.5

Product Depth (mm) :

5(mm)

Number of Positions :

2

Fuse Type :

-

Manufacturer part # :

280-904

Operating Voltage (Max) :

800V

Nominal voltage :

800V

Pins per row :

2

RoHS :

yes

Packaging :

Box

Voltage - UL :

-

Connectable conductor cross section solid-core :

0.08 - 2.5

Height :

28mm

Cross section (inflexible) (max.) :

2.50mm²

Gender :

Male

Product Status :

Active

Number of Circuits :

1

Current - IEC :

24 A

Series :

WINSTA MIDI

Cross section (flexible) (min.) :

0.08mm²

Product Length (mm) :

53(mm)

Voltage - IEC :

800V

Width :

5mm

Nominal current :

24A

Mounting Type :

DIN Rail

Base Product Number :

280

Stripping Length :

8mm ~ 9mm

Note :

n/a

Min. stripping length :

8mm

Content :

100pc(s)

Number of Contact Rows :

2

Number of Contacts :

2(POS)

Shell Size :

-

Length :

53

Package :

Bulk

Contamination level :

3

Voltage Rating :

800 V

Pitch :

5mm

Wire Gauge :

12-28(AWG)
