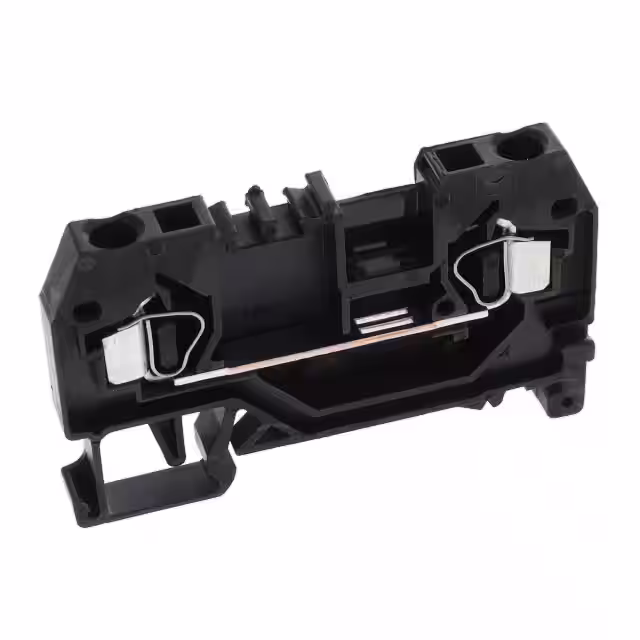

280-905

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Housing Color :

Black

Product Height (mm) :

28(mm)

Shell Material :

PA

Product Length (mm) :

53(mm)

RoHS :

yes

Color :

Black

Operating Voltage (Max) :

800V

Rad Hardened :

No

Content :

100pc(s)

Terminal - Width :

5.0mm

Stripping Length :

8mm ~ 9mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Mounting Style :

Din-Rail

Current Rating (Max) :

24(A)

Nominal current :

24A

No. of rows :

1

Rated Current :

24A

Shell Size :

-

Connection :

Pull spring

Mounting Type :

DIN Rail

Manufacturer :

Wago

Cross section (inflexible) (min.) :

0.08mm²

Number of Circuits :

1

Series :

WINSTA MIDI

Number of Contacts :

2(POS)

Voltage - IEC :

800V

Contamination level :

3

Package :

Box

Number of Levels :

1

Voltage - UL :

-

AWG max. :

14

Product Depth (mm) :

5(mm)

Disconnect Type :

-

Min. stripping length :

8mm

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Note :

n/a

Industrial packaging :

yes

Wire Gauge or Range - AWG :

12-28 AWG

Wire Gauge or Range - mm² :

0.08-2.5mm²

Nominal current - rounded value :

24A

Number of Positions/Contacts :

3

Type :

Terminal Block

Fuse Type :

-

Wire Gauge :

12-28(AWG)

Manufacturer part # :

280-905

Clamp width :

5mm

Termination Style :

Push In, Spring

Cross section (inflexible) (max.) :

2.50mm²

Number of Positions :

2

Current - IEC :

24 A

Packaging :

Box

Dim :

(W x H) 5 mm x 28 mm

AWG (min.) :

28

Width :

5mm

Rated Voltage :

800V

Nominal voltage :

800V

Number of Contact Rows :

2

Features :

-

Pins per row :

2

Cross section (flexible) (max.) :

2.50mm²

Gender :

Male

Height :

28mm

Approvals :

CSA, UR

Stripping length (max.) :

9mm

Cross section (flexible) (min.) :

0.08mm²
