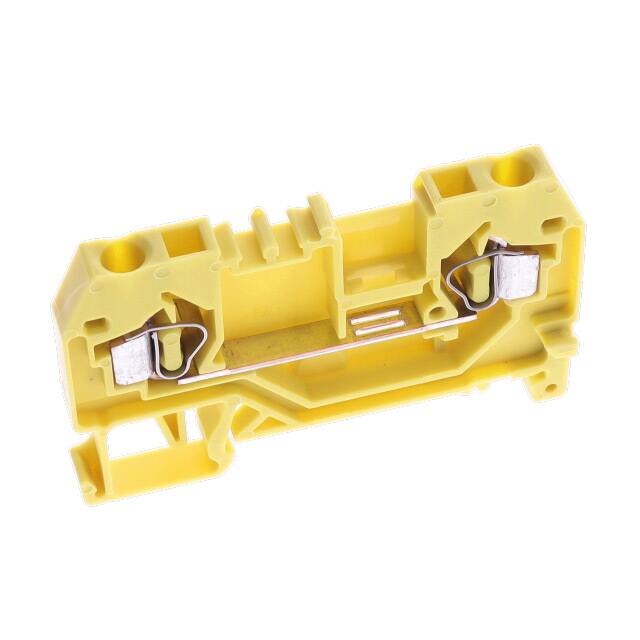

280-906

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Depth :

28

Mounting Style :

Din-Rail

Rad Hardened :

No

Disconnect Type :

-

Material Flammability Rating :

UL94 V-0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Rated Voltage :

800V

Clamp width :

5mm

Housing Color :

Yellow

Number of Positions :

2

Width :

5mm

Rated Current :

24A

Number of Positions/Contacts :

3

Rated current In :

24

Pins per row :

2

Length :

53

Contamination level :

3

Wire Gauge or Range - AWG :

12-28 AWG

Manufacturer part # :

280-906

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connection :

Pull spring

Series :

WINSTA MIDI

Number of Circuits :

1

Height :

28mm

Color :

Yellow

Product Status :

Active

Cross section (inflexible) (min.) :

0.08mm²

Dim :

(W x H) 5 mm x 28 mm

Terminal - Width :

5.0mm

Industrial packaging :

yes

Shell Size :

-

AWG max. :

14

Number of Levels :

1

Operating Voltage (Max) :

800V

Termination Method :

Screw

Number of Contact Rows :

2

Nominal current - rounded value :

24A

Mounting Type :

DIN Rail

Cross section (flexible) (min.) :

0.08mm²

Stripping length (max.) :

9mm

Approvals :

CSA, UR

Gender :

Male

Features :

-

Number of Contacts :

2(POS)

Wire Gauge :

12-28(AWG)

Contact Pitch (mm) :

Not Required(mm)

Cross section (flexible) (max.) :

2.50mm²

Current - IEC :

24 A

Note :

n/a

Voltage - UL :

-

Connectable conductor cross section multi-wired :

0.08 - 2.5

Termination Style :

Push In, Spring

Voltage - IEC :

800V

Manufacturer :

Wago

Min. stripping length :

8mm

Type :

Standard Block

Product Depth (mm) :

5(mm)

Shell Material :

PA

Cross section (inflexible) (max.) :

2.50mm²

Nominal voltage :

800V

Product Height (mm) :

28(mm)

RoHS :

yes

No. of rows :

1

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section solid-core :

0.08 - 2.5

Nominal current :

24A

Current Rating (Max) :

24(A)

Content :

100pc(s)

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Packaging :

Box

AWG (min.) :

28

Package :

Box

Fuse Type :

-

Product Length (mm) :

53(mm)
