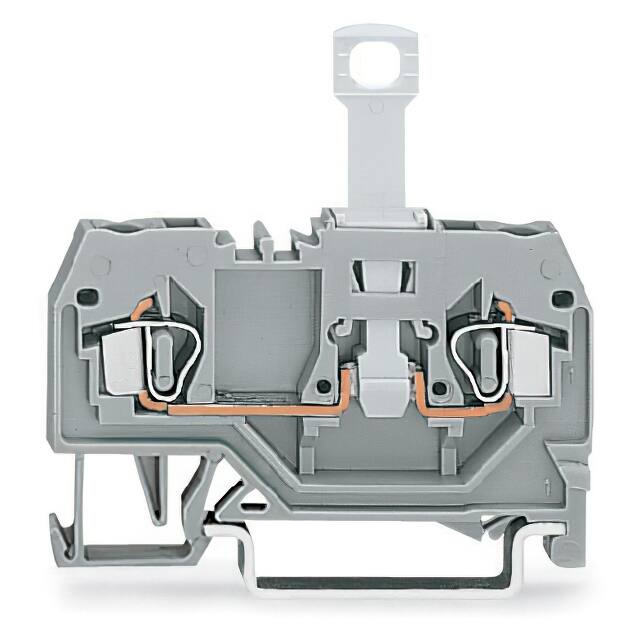

280-912

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

ECCN (US) :

EAR99

Content :

50pc(s)

Number of Circuits :

1

Number of Levels :

1

Industrial packaging :

yes

Fuse Type :

-

Inflammability class of insulation material according to with UL94 :

V0

Cross section (flexible) (max.) :

2.50mm²

Wire Gauge or Range - AWG :

12-28 AWG

Mounting :

DIN Rail

Color :

Gray

Min. stripping length :

8mm

Voltage - IEC :

400V

PPAP :

No

Connectable conductor cross section multi-wired :

0.08 - 2.5

AWG max. :

14

Series :

WINSTA MIDI

Disconnect Type :

Disconnect Tab

Dim :

(W x H) 5 mm x 52.50 mm

Maximum Current Rating (A) :

10

Stripping length (max.) :

9mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Minimum Operating Temperature (°C) :

-60

Configuration :

L

Connection :

Pull spring

Number of Rows :

2

Packaging :

Box

Nominal current - rounded value :

10A

Nominal current :

10A

Clamp width :

5mm

RoHS :

yes

Current - IEC :

10 A

Approvals :

CSA, UR

Product Status :

Active

Features :

+ separator

Maximum Voltage Rating :

400V

Termination Method :

Spring Clamp

Gender :

Female/Male

Depth :

52.5

Cross section (inflexible) (max.) :

2.50mm²

HTS :

8536.90.40.00

Shell Size :

-

Voltage - UL :

-

AWG (min.) :

28

Type :

Disconnect Terminal Block

EU RoHS :

Compliant

Number of Positions/Contacts :

3

Connectable conductor cross section solid-core :

0.08 - 2.5

Cross section (flexible) (min.) :

0.08mm²

Maximum Operating Temperature (°C) :

105

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Height :

52.50mm

Manufacturer part # :

280-912

Width :

5mm

Number of Positions :

2

No. of rows :

1

Termination Style :

Push In, Spring

Rated current In :

10

Manufacturer :

Wago

Contamination level :

3

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Mounting Type :

DIN Rail

Package :

Box

Material Flammability Rating :

UL94 V-0

Housing Color :

Gray

Stripping Length :

8mm ~ 9mm

Shell Material :

PA

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Terminal - Width :

5.0mm

Pins per row :

2

Nominal voltage :

400V

Note :

n/a

Length :

53

Cross section (inflexible) (min.) :

0.08mm²

Number of Contacts :

2

Automotive :

No
