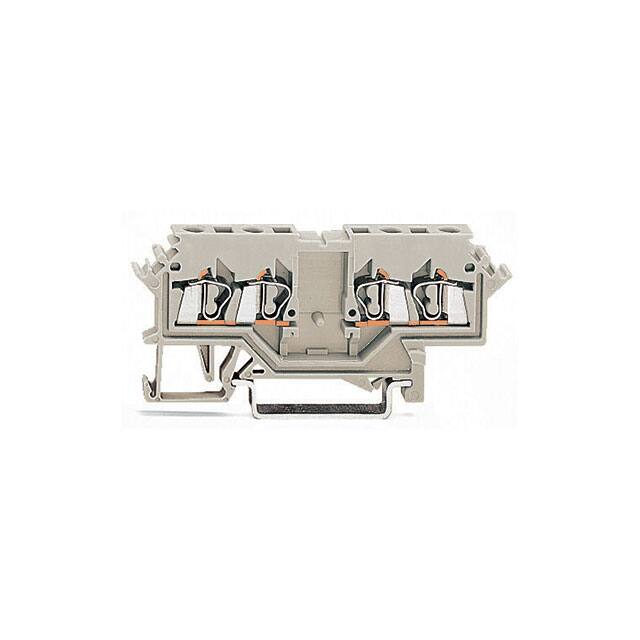

280-989

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Nominal voltage :

550V

Rated current In :

22

Features :

Complies with ATEX Ex-e II standards

Wire Gauge or Range - mm² :

0.08-2.5mm²

Termination Style :

Push In, Spring

Color :

Gray

Cross section (inflexible) (max.) :

2.50mm²

Voltage - UL :

-

Number of Rows :

4

Approvals :

CSA, UL

Gender :

FEMALE

RoHS :

yes

Length :

73

Termination Method :

Spring Clamp

PPAP :

No

Fuse Type :

-

EU RoHS :

Compliant

Series :

WINSTA MIDI

Note :

n/a

Inflammability class of insulation material according to with UL94 :

V0

Maximum Operating Temperature (°C) :

105

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

Stripping length (max.) :

9mm

Shell Size :

-

Number of Circuits :

1

Height :

28mm

Number of Positions :

4

Current - IEC :

22 A

Mounting :

DIN Rail

Material Flammability Rating :

UL94 V-0

Terminal - Width :

5.0mm

Dim :

(W x H) 5 mm x 28 mm

Number of Levels :

1

Cross section (flexible) (min.) :

0.02mm²

Cross section (inflexible) (min.) :

0.02mm²

Shell Material :

PA

Maximum Voltage Rating :

550V

Nominal current :

22A

Industrial packaging :

yes

Housing Color :

Light Gray

Voltage - IEC :

550V

Width :

5mm

HTS :

8536.90.40.00

Clamp width :

5mm

Number of Positions/Contacts :

4

Manufacturer part # :

280-989

Connectable conductor cross section solid-core :

0.2 - 2.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Type :

Potential Distributor

Wire Gauge or Range - AWG :

12-28 AWG

Maximum Current Rating (A) :

22

Product Status :

Active

No. of rows :

1

AWG max. :

14

Min. stripping length :

8mm

Pins per row :

4

Minimum Operating Temperature (°C) :

-60

Cross section (flexible) (max.) :

2.50mm²

AWG (min.) :

24

Nominal current - rounded value :

22A

Disconnect Type :

-

Connection :

Pull spring

Connectable conductor cross section multi-wired :

0.2 - 2.5

Mounting Type :

DIN Rail

Depth :

28

ECCN (US) :

EAR99

Package :

Box

Manufacturer :

Wago

Stripping Length :

8mm ~ 9mm

Number of Contacts :

4

Automotive :

No

Configuration :

L

Content :

100pc(s)
