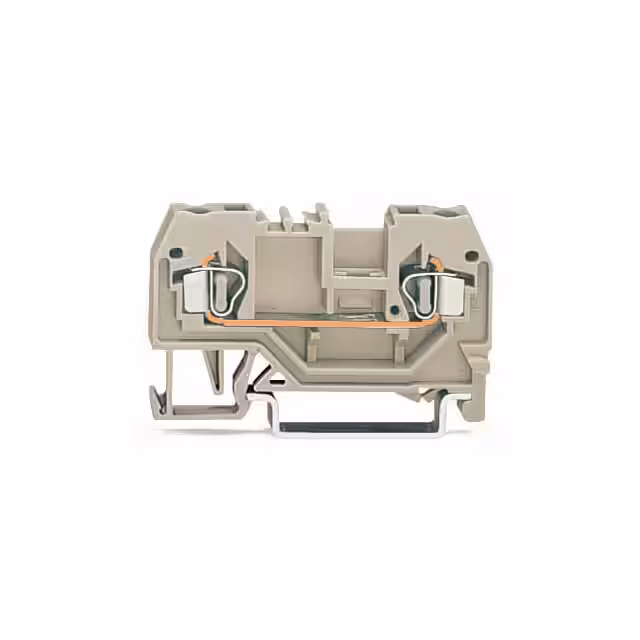

280-992

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Style :

Din-Rail

Mounting :

DIN Rail

Type :

Terminal Block

Voltage - UL :

-

Configuration :

L

Voltage - IEC :

550V

Terminal - Width :

5.0mm

Number of Contact Rows :

2

Wire Gauge or Range - AWG :

12-28 AWG

Cross section (inflexible) (max.) :

2.50mm²

Number of Positions :

2

Current Rating (Max) :

23(A)

Note :

n/a

Manufacturer :

Wago

Manufacturer part # :

280-992

Automotive :

No

Number of Positions/Contacts :

4

Rad Hardened :

No

HTS :

8536.90.40.00

PPAP :

No

Wire Gauge or Range - mm² :

0.08-2.5mm²

Termination Style :

Push In, Spring

Pins per row :

2

Rated current In :

23

Number of Circuits :

1

Min. stripping length :

8mm

Housing Color :

Light Gray

Contact Pitch (mm) :

Not Required(mm)

Clamp width :

5mm

Number of Rows :

2

Gender :

FEMALE

Number of Contacts :

2

Content :

100pc(s)

Connectable conductor cross section solid-core :

0.2 - 2.5

Nominal current - rounded value :

23A

Wire Gauge :

12-28(AWG)

Cross section (inflexible) (min.) :

0.08mm²

Dim :

(W x H) 5 mm x 28 mm

Package :

Box

Minimum Operating Temperature (°C) :

-60

EU RoHS :

Compliant

ECCN (US) :

EAR99

AWG (min.) :

28

Disconnect Type :

-

Depth :

28

Nominal voltage :

550V

Maximum Voltage Rating :

550V

Industrial packaging :

yes

Shell Size :

-

Features :

Complies with ATEX Ex-e II standards

Material Flammability Rating :

UL94 V-0

Connection :

Pull spring

Current - IEC :

23 A

Packaging :

Box

Product Status :

Active

Approvals :

CSA, UR

Maximum Operating Temperature (°C) :

105

AWG max. :

14

Inflammability class of insulation material according to with UL94 :

V0

Series :

WINSTA MIDI

No. of rows :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Shell Material :

PA

Cross section (flexible) (min.) :

0.08mm²

Number of Levels :

1

Mounting Type :

DIN Rail

Length :

53

Fuse Type :

-

RoHS :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

Stripping Length :

8mm ~ 9mm

Color :

White

Connectable conductor cross section multi-wired :

0.2 - 2.5

Maximum Current Rating (A) :

23

Nominal current :

23A

Operating Voltage (Max) :

550V

Housing Material :

Polyamide 6/6

Height :

28mm

Stripping length (max.) :

9mm

Width :

5mm

Cross section (flexible) (max.) :

2.50mm²
