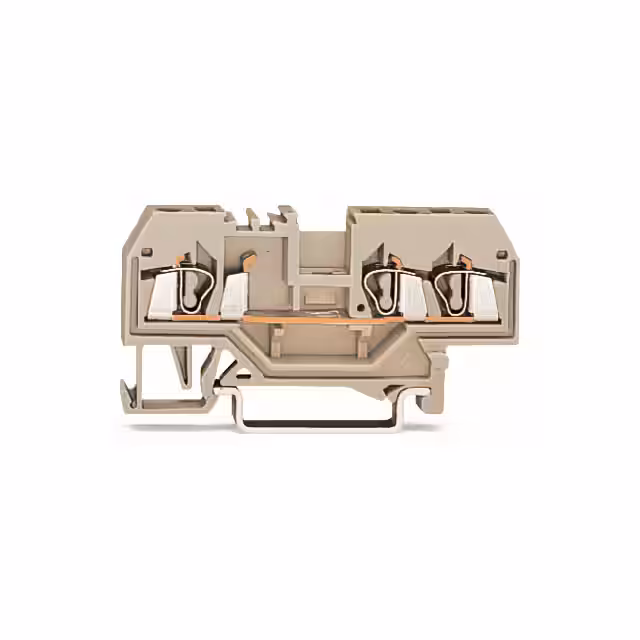

280-993

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Content :

100pc(s)

Voltage - IEC :

550V

Nominal current - rounded value :

22A

ECCN (US) :

EAR99

Shell Size :

-

Number of Contacts :

3

Number of Contact Rows :

3

Gender :

FEMALE

Nominal current :

22A

Color :

Light Gray

Maximum Current Rating (A) :

22

Manufacturer part # :

280-993

RoHS :

yes

Number of Positions/Contacts :

4

Wire Gauge or Range - AWG :

12-28 AWG

Housing Material :

Polyamide 6/6

Mounting :

DIN Rail

Rad Hardened :

No

Current Rating (Max) :

22(A)

Disconnect Type :

-

Dim :

(W x H) 5 mm x 28 mm

Product Status :

Active

Package :

Box

Number of Pins :

3

Flammability Rating :

UL94 V-0

Note :

n/a

Cross section (flexible) (min.) :

0.20mm²

Type :

Feed-Through Terminal Block

AWG max. :

14

Number of Levels :

1

Manufacturer :

Wago

Nominal voltage :

550V

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

EU RoHS :

Compliant

No. of rows :

1

Length :

64

Connectable conductor cross section solid-core :

0.2 - 2.5

Cross section (flexible) (max.) :

2.50mm²

Connectable conductor cross section multi-wired :

0.2 - 2.5

Connection :

Pull spring

Stripping length (max.) :

9mm

Voltage - UL :

-

Rated current In :

22

Current Rating :

22 A

Wire Gauge :

12-28(AWG)

Contact Material :

Electrolytic Copper

Minimum Operating Temperature (°C) :

-60

Maximum Operating Temperature (°C) :

105

Cross section (inflexible) (min.) :

0.20mm²

Mounting Style :

Din-Rail

Number of Positions :

3

Automotive :

No

Width :

5mm

Clamp width :

5mm

Shell Material :

PA

Min. stripping length :

8mm

Current - IEC :

22 A

Cross section (inflexible) (max.) :

2.50mm²

Termination Style :

Push In, Spring

Inflammability class of insulation material according to with UL94 :

V0

Configuration :

L

Height :

28mm

PPAP :

No

Series :

WINSTA MIDI

HTS :

8536.90.40.00

Material Flammability Rating :

UL94 V-0

Contact Plating :

Tin

Stripping Length :

8mm ~ 9mm

Termination Method :

Spring Clamp

Operating Voltage (Max) :

550V

Terminal - Width :

5.0mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Mount :

Through Hole

Mounting Type :

DIN Rail

Industrial packaging :

yes

Number of Circuits :

1

Pins per row :

3

Approvals :

CSA, UR

Depth :

28

Features :

Complies with ATEX Ex-e II standards

AWG (min.) :

24

Maximum Voltage Rating :

550V

Housing Color :

Light Gray

Contact Pitch (mm) :

Not Required(mm)

Wire Gauge or Range - mm² :

0.08-2.5mm²

Fuse Type :

-

Packaging :

Box

Number of Rows :

3
