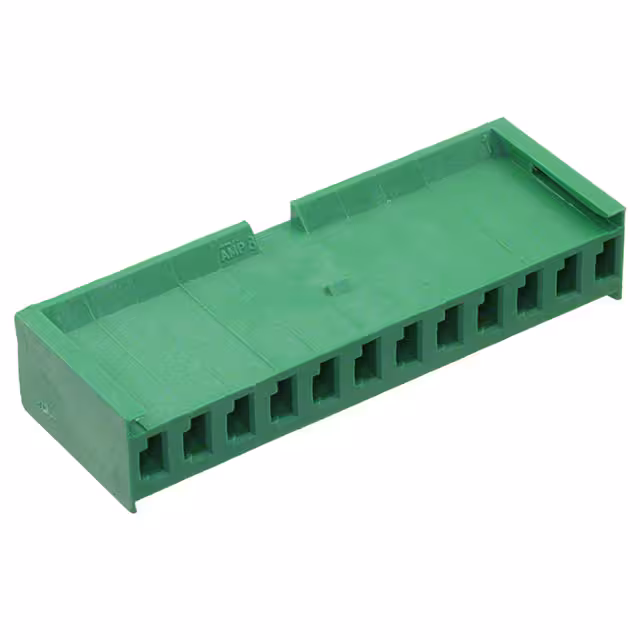

280595

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Contact Material :

NOT SPECIFIED

Brand :

TE Connectivity

Base/Housing Material :

PC (Polycarbonate)

Pitch (mm) :

3.96(mm)

Mounting Option 1 :

LOCKING

Housing Material :

Polycarbonate

Connector Type :

BOARD CONNECTOR

Tradename :

AMPMODU

Filter Feature :

No

Contact Gender :

FEMALE

Number of Rows :

1

UL Flammability Code :

94V-1

Minimum Operating Temperature :

- 40 C

Number of Contacts :

12 POS

Current Rating (Max) :

5/Contact(A)

Option :

GENERAL PURPOSE

Total Number of Contacts :

12

Wire Gauge :

18-26(AWG)

Housing Color :

Green

Reach Compliance Code :

Compliant

For Use With :

AMPMODU MOD 1 Series Contacts

Product Depth (mm) :

9.3(mm)

Body/Shell Style :

Receptacle

Polarization Key :

POLARIZED HOUSING

HTS Code :

8536.69.40.40

Product Length (mm) :

47.4(mm)

Termination Type :

Crimp

Mixed Contacts :

No

RoHS :

Details

Mating Contact Pitch :

0.156 inch

Factory Lead Time :

43 Weeks

Brand Name :

AMP

Additional Feature :

AMPMODU

Maximum Operating Temperature :

+ 105 C

Width :

9.3mm

Mounting Style :

Cable Mount / Free Hanging

IEC Conformance :

No

Length :

47.4mm

Body Orientation :

Straight

Product Category :

Headers and Wire Housings

Pitch :

3.9600 mm

Gender :

Receptacle

Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Number of Contact Rows :

1

DIN Conformance :

No

Termination Style :

Crimp

Reference Standard :

UL

Mounting Type :

CABLE

Body Depth :

0.669 inch

Product Length :

47.4 mm

Contact Type :

Socket (Female)

MIL Conformance :

No

Number of Positions :

12 Position

Product :

Wire Housings

Type :

Housing

Product Type :

Headers and Wire Housings

Product Height (mm) :

17(mm)

Insulator Color :

Green

Housing Gender :

Receptacle

Wire Size :

26 to 18, 26 AWG

Packaging :

Bulk

Reliability :

COMMERCIAL

Body Breadth :

0.366 inch

Contact Style :

SQ PIN-SKT

Pbfree Code :

yes

Series :

AMPMODU Mod I
