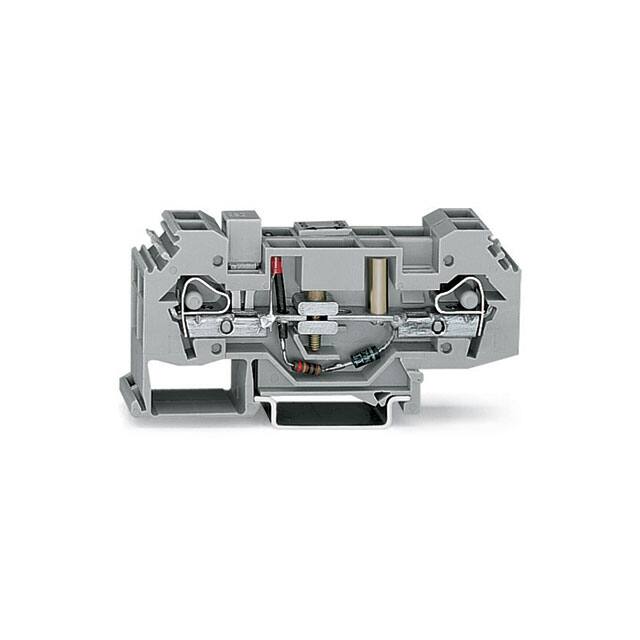

282-138

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Material Flammability Rating :

UL94 V-0

SVHC :

yes

Wire Gauge or Range - AWG :

10-24 AWG

Package :

Box

Cross section (inflexible) (max.) :

6mm²

Connection :

Pull spring

Manufacturer :

Wago

SVHC Exceeds Threshold :

yes

Connectable conductor cross section multi-wired :

0.2 - 6

Length :

87.5

Content :

12pc(s)

Width :

16mm

Series :

793

Wire Gauge or Range - mm² :

0.2-6mm²

Note :

n/a

Number of Rows :

4

HTS :

8536.90.40.00

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage - IEC :

-

Termination Style :

Push In, Spring

Min. stripping length :

12mm

Mounting Type :

DIN Rail

Manufacturer part # :

282-138

PPAP :

No

Type :

Ground Terminal Block

Configuration :

L

Stripping length (max.) :

13mm

Cross section (flexible) (min.) :

0.20mm²

Housing Color :

Gray

Voltage - UL :

-

Mounting :

DIN Rail

AWG max. :

10

Cross section (inflexible) (min.) :

0.20mm²

Color :

Gray

ECCN (US) :

EAR99

AWG (min.) :

24

Automotive :

No

Number of Circuits :

2

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 4

Stripping Length :

12mm ~ 13mm

Features :

Diode, LED, Resistor

Disconnect Type :

-

Cross section (flexible) (max.) :

6mm²

No. of rows :

2

Terminal - Width :

16.0mm

Dim :

(W x H) 16 mm x 38.50 mm

Depth :

38.5

Number of Contacts :

4

Connectable conductor cross section solid-core :

0.2 - 6

Number of Levels :

1

Fuse Type :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 6

Height :

38.50mm

Number of Positions :

4

RoHS :

yes

Clamp width :

16mm

EU RoHS :

Compliant with Exemption

Product Status :

Active

Inflammability class of insulation material according to with UL94 :

V0

Pins per row :

2

Minimum Operating Temperature (°C) :

-60

Termination Method :

Spring Clamp

Maximum Operating Temperature (°C) :

105

Industrial packaging :

yes
