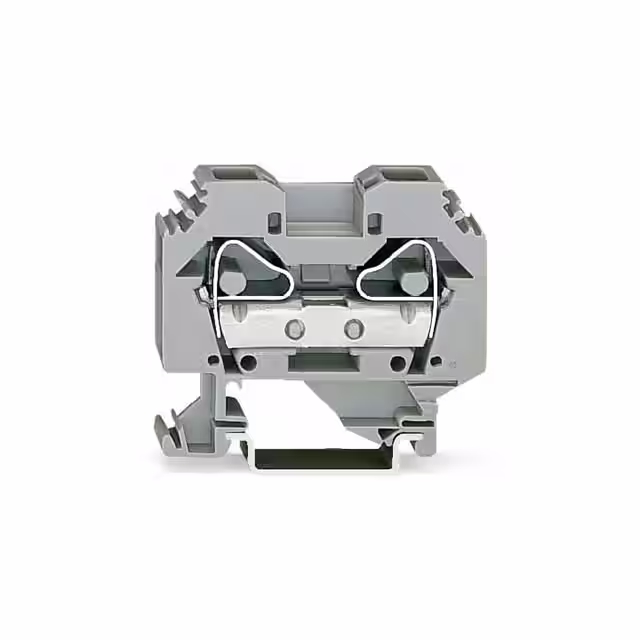

283-101

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Manufacturer :

Wago

Product Height (mm) :

45.5(mm)

Cross section (inflexible) (min.) :

0.20mm²

Housing Color :

Gray

Stripping length (max.) :

17mm

Terminal - Width :

12.0mm

Number of Positions :

2

Series :

n/a

Contact Pitch (mm) :

Not Required(mm)

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 16

Current Rating (Max) :

76(A)

Wire Gauge or Range - AWG :

6-24 AWG

Connectable conductor cross section solid-core :

0.2 - 16

Gender :

F

Cross section (flexible) (min.) :

0.20mm²

AWG max. :

6

Industrial packaging :

yes

Nominal current :

76A

Voltage - IEC :

800V

Connectable conductor cross section multi-wired :

0.2 - 16

Product Depth (mm) :

58(mm)

RoHS :

yes

Number of Circuits :

1

Voltage - UL :

-

Operating Voltage (Max) :

800V

Cross section (flexible) (max.) :

16mm²

Termination Style :

Push In, Spring

Cross section (inflexible) (max.) :

16mm²

Color :

Gray

Wire Gauge :

6-24(AWG)

Number of Levels :

1

Mounting :

Din-Rail

Number of Contact Rows :

2

Manufacturer part # :

283-101

Rad Hardened :

No

AWG (min.) :

24

Current - IEC :

76 A

Depth :

45.5

Product Length (mm) :

12(mm)

Mounting Type :

DIN Rail

Number of Contacts :

2(POS)

Disconnect Type :

-

Height :

45.50mm

Pins per row :

2

No. of rows :

1

Configuration :

L

Approvals :

CSA, UR

Rated current In :

76

Note :

n/a

Package :

Box

Contamination level :

3

Clamp width :

12mm

Features :

-

Material Flammability Rating :

UL94 V-0

Content :

50pc(s)

Packaging :

Box

Dim :

(W x H) 12 mm x 45.50 mm

Body Orientation :

Straight

Nominal voltage :

800V

Type :

Standard Block

Wire Gauge or Range - mm² :

0.08-2.5mm²

Product Status :

Active

Length :

58

Connection :

Pull spring

Inflammability class of insulation material according to with UL94 :

V0

Mounting Style :

Din-Rail

Stripping Length :

16mm ~ 17mm

Width :

12mm

Min. stripping length :

16mm

Nominal current - rounded value :

76A

Fuse Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6
