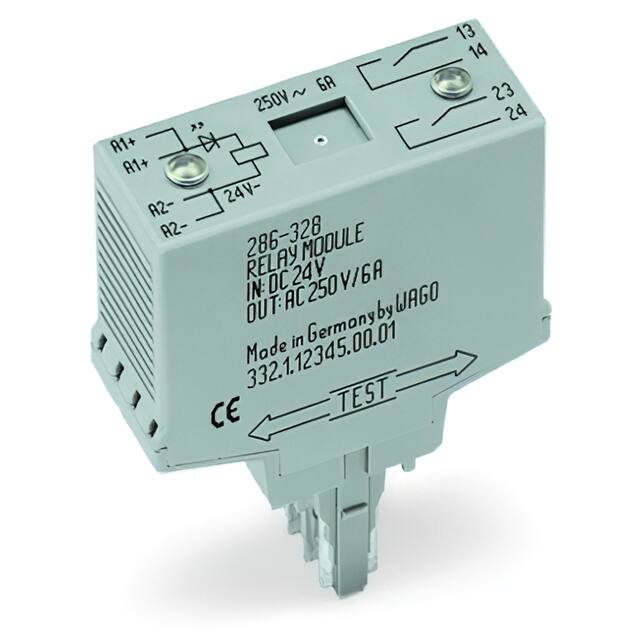

286-328

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Approvals :

UL

Termination Style :

Plug In

Relay Type :

GENERAL PURPOSE

Termination :

Socket

Switching current (max.) :

6A

Product Status :

Active

Coil Type :

Non Latching

Max. temperature :

+40°C

Max. switching capacity :

2000VA,150W

Series :

286

RoHS :

yes

Weight :

28.7g

Content :

1pc(s)

Type :

286-328

Mounting :

Plug In

Coil Voltage :

24VDC

Contact Material :

Silver Tin Oxide (AgSnO)

Fall time :

4ms

Min. temperature :

-25°C

Manufacturer :

Wago

Coil Current :

7.5 mA

Package :

Box

Release Time :

4 ms

Contacts :

2NO

Operating Temperature :

-25°C ~ 40°C

Coil nominal voltage :

24V dc

Switching voltage (max.) :

250V DC,380V AC

Durability :

1 x 10 5 cycles

Enclosure :

Plastic

Contact Rating (Current) :

6 A

Operate Time :

10 ms

Switching Voltage :

250VAC - Max

Mounting Type :

Socketable

Width :

20mm

Features :

Lighted Indicator

Connection :

Connector
