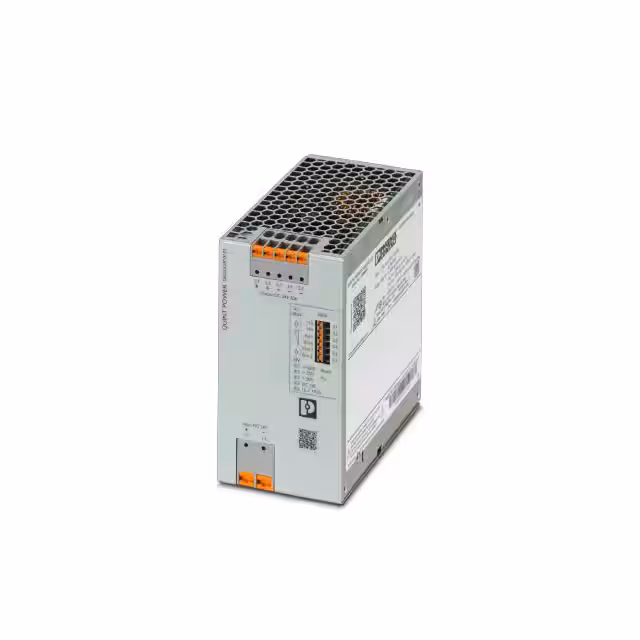

2910121

Manufacturer :

Phoenix Contact

Product Category :

Height :

130 mm

Input Voltage Range :

18 → 32 V dc

Current - Output (Max) :

20A

Package :

Box

Voltage - Output 6 :

-

Voltage - Output 1 :

24V

Voltage - Isolation :

4 kV

Output Voltage :

24V dc

Minimum Load Required :

-

Length :

125 mm

Voltage - Output 5 :

-

Voltage - Output 2 :

-

Mounting Style :

DIN Rail

Standard Number :

60950-1; 61010-1; ATEX

Input Type :

DC

Input Voltage :

18 VDC to 32 VDC

Features :

Adjustable Output, Remote On/Off

Voltage - Output 4 :

-

Voltage - Output 3 :

-

Approval Agency :

CB, CSA, cULus, UL

Depth :

125

Minimum Operating Temperature :

- 25 C

Efficiency :

94.7%

Width :

70 mm

Product :

Isolated

Size / Dimension :

4.92 L x 2.76 W x 5.12 H (125.0mm x 70.0mm x 130.0mm)

Applications :

Hazardous Locations, ITE (Commercial), Laboratory

Modular version :

No

Power (Watts) :

480W

Output Power :

480 W

Degree of protection (IP) :

IP20

Product Status :

Active

Series :

Quint4

Mounting Type :

DIN Rail

Operating Temperature :

-25°C ~ 70°C (With Derating)

Number of Outputs :

1 Output

Type of electric connection :

Other

Rail mounting possible :

yes

Maximum Operating Temperature :

+ 70 C
