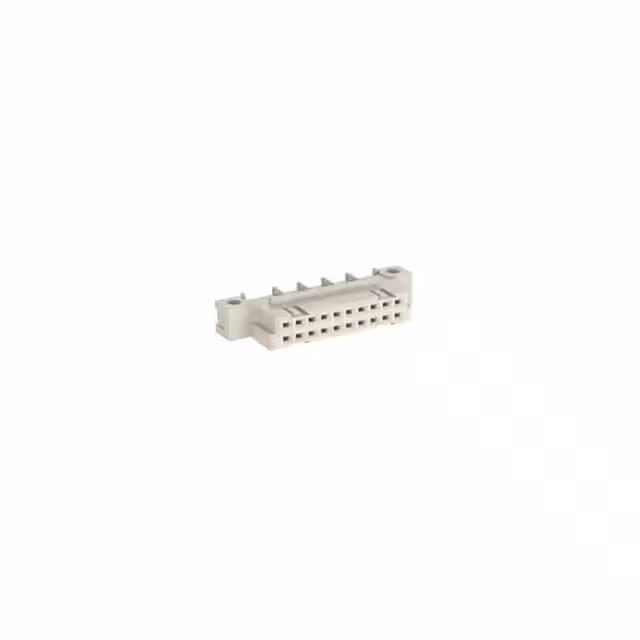

294927

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

Contact Style :

SQ PIN-SKT

Mating Contact Row Spacing :

0.1 inch

Reliability :

COMMERCIAL

Terminal Length :

0.118 inch

Durability :

400 Cycles

Mounting Type :

BOARD

Option :

GENERAL PURPOSE

Contact Material :

NOT SPECIFIED

DIN Conformance :

yes

Body Orientation :

RIGHT ANGLE

Body Breadth :

0.315 inch

Name of Rows Loaded :

A,B

Number Of PCB Rows :

2

Additional Feature :

RoHS Compliant

Filter Feature :

No

IEC Conformance :

No

Mating Contact Pitch :

0.1 inch

Body/Shell Style :

PLUG

Number of Contact Rows :

2

Gender :

F

Body Depth :

0.608 inch

Insulation Resistance :

10000000000 Ω

Product Length (mm) :

38.1(mm)

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

2 A

Termination Method :

Solder

MIL Conformance :

No

Termination Type :

Solder

PCB Contact Pattern :

RECTANGULAR

Terminal Pitch :

2.54 mm

Product Depth (mm) :

15.14(mm)

Mounting Style :

RIGHT ANGLE

Mixed Contacts :

No

Total Number of Contacts :

20

Insertion Force-Max :

.9174 N

Mounting Option 1 :

LOCKING

PCB Contact Row Spacing :

2.54 mm

Reach Compliance Code :

Compliant

Pitch (mm) :

2.54(mm)

Dielectric Withstanding Voltage :

1400VAC V

Contact Gender :

FEMALE

Connector Type :

BOARD EURO CONNECTOR

Product Height (mm) :

8(mm)

Contact Resistance :

20 mΩ

Type :

DIN 41612

Number of Contacts :

20(POS)

Reference Standard :

UL, CSA
