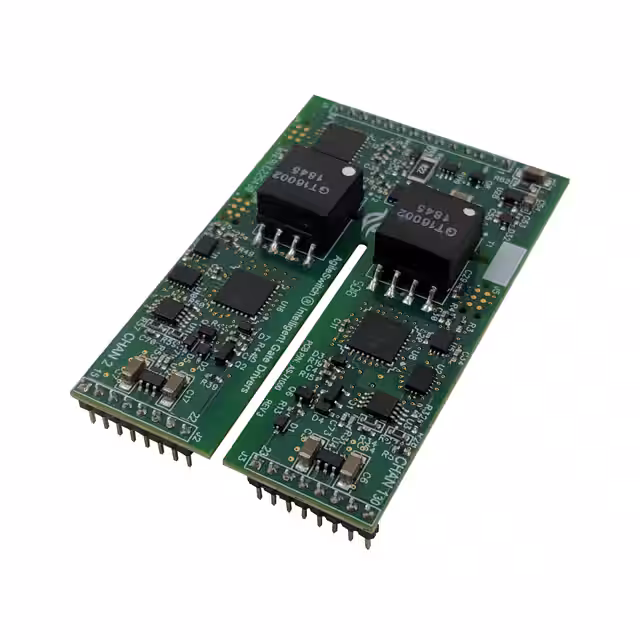

2ASC-12A1HP

Manufacturer :

Microchip Technology

Product Category :

Gate Drivers

Rise / Fall Time (Typ) :

80ns, 90ns

Number of Outputs :

2 Output

Product Category :

Gate Drivers

Number of Terminals :

30

Terminal Position :

Dual

Surface Mount :

No

Number of Channels :

2

Series :

AgileSwitch

Width :

40 mm

Reach Compliance Code :

Unknown

Supply Voltage-Max (Vsup) :

16 V

Technology :

SiC

Number of Drivers :

2 Driver

Maximum Operating Temperature :

+ 85 C

Temperature Grade :

Industrial

Channel Type :

SYNCHRONOUS

Operating Supply Current :

250 mA

Seated Height-Max :

10.1 mm

Product Type :

Gate Drivers

Package / Case :

Module

For Use With :

Auxiliary Power Unit, Charging, Electric Vehicles, Storage and Inverter

Driven Configuration :

Half-Bridge

Logic Voltage - VIL, VIH :

1.25V, 3.5V

Adjustable Threshold :

No

Output Voltage :

24 V

Minimum Operating Temperature :

- 40 C

Mounting Style :

Through Hole

Supplier Device Package :

Module

Product :

MOSFET Gate Drivers

Product Status :

Active

Package Shape :

RECTANGULAR

Package :

Bulk

Brand :

Microchip Technology / Atmel

Mounting Type :

Through Hole

Operating Temperature :

-40°C ~ 85°C (TA)

Terminal Form :

THROUGH-HOLE

Rise Time :

80 ns

Subcategory :

PMIC - Power Management ICs

Driver Configuration :

High Side and Low Side

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

JESD-30 Code :

R-XDMA-T30

Output Current :

10 mA

Length :

61 mm

Gate Type :

P-Channel MOSFET

Current - Peak Output (Source, Sink) :

10A, 10A

Configuration :

Inverting

Base Product Number :

2ASC-12

RoHS :

Details

Voltage - Supply :

14V ~ 16V

Supply Voltage-Min (Vsup) :

14 V

Manufacturer :

Microchip

Number of Functions :

1

Input Type :

Non-Inverting

Type :

High-Side, Low-Side
