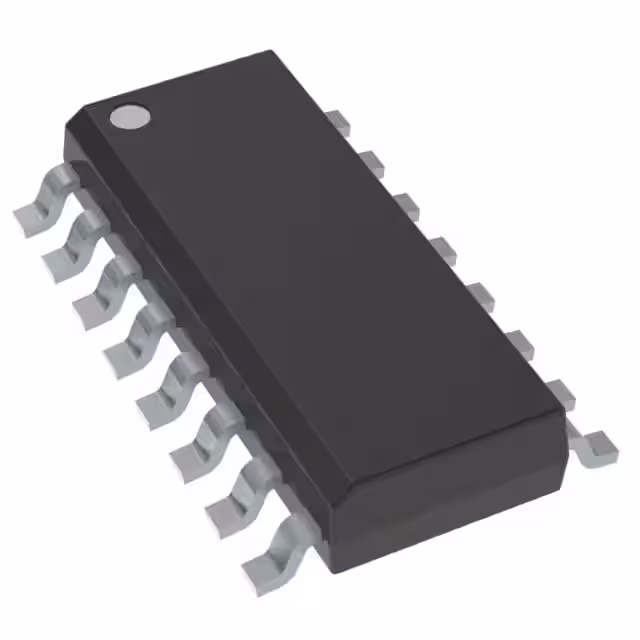

2EDF9275FXUMA1

Manufacturer :

Infineon Technologies

Product Category :

Gate Drivers

Gate Type :

IGBT, SiC MOSFET

Product :

MOSFET Gate Drivers

Number of Drivers :

2 Driver

Mounting Type :

Surface Mount

Packaging :

MouseReel

RoHS :

Details

Series :

Dual

Base Product Number :

2EDF9275

Voltage - Supply :

20V

Driver Type :

High and Low Side

Maximum Operating Supply Voltage :

3.5 V

Number of Outputs :

2 Output

Logic Voltage - VIL, VIH :

-, 1.65V

Supplier Device Package :

PG-DSO-16-11

Product Status :

Active

Bridge Type :

Half Bridge

Operating Supply Current :

1.4 mA

High Side Voltage - Max (Bootstrap) :

650 V

Operating Temperature :

-40°C ~ 125°C (TA)

Minimum Operating Supply Voltage :

3 V

Manufacturer :

Infineon

Mounting Style :

SMD/SMT

Rise / Fall Time (Typ) :

6.5ns, 4.5ns

Driven Configuration :

Half-Bridge

Brand :

Infineon Technologies

Minimum Operating Temperature :

- 40 C

Channel Type :

Independent

Peak Output Current :

4/8 A

Driver Configuration :

Non-Inverting

MSL :

MSL 3 - 168 hours

Maximum Operating Temperature :

+ 125 C

Rise Time :

6.5 ns

Typical Operating Supply Voltage :

3.3 V

Package / Case :

16-SOIC (0.154, 3.90mm Width)

Input Logic Compatibility :

CMOS/TTL

Product Category :

Gate Drivers

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Type :

Half-Bridge

Current - Peak Output (Source, Sink) :

4A, 8A

Subcategory :

PMIC - Power Management ICs

Product Type :

Gate Drivers

Output Current :

8 A
