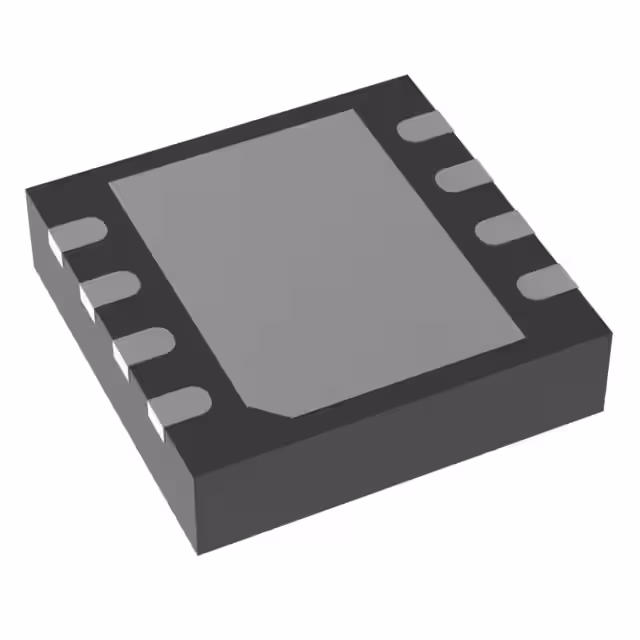

2EDL8124GXUMA1

Manufacturer :

Infineon Technologies

Product Category :

Gate Drivers

Voltage - Supply :

8V ~ 17V

Series :

EiceDRIVER™

Product Status :

Active

Number of Pins :

8

Number of Outputs :

2 Output

Minimum Operating Temperature :

- 40 C

Input Voltage :

20 V

Supplier Device Package :

PG-VDSON-8-4

Rise / Fall Time (Typ) :

45ns, 45ns

Logic Voltage - VIL, VIH :

-

Maximum Operating Temperature :

+ 125 C

Number of Drivers :

2

Gate Type :

N-Channel MOSFET

Operating Frequency :

1 MHz

Package / Case :

8-VDFN Exposed Pad

Bridge Type :

Full Bridge/Half Bridge

Typical Operating Supply Voltage :

10 V

Product :

Isolated Gate Drivers

Peak Output Current :

4 A

Driver Configuration :

Non-Inverting

Base Product Number :

2EDL8124

Operating Supply Current :

2.9 mA

Current - Peak Output (Source, Sink) :

4A, 4A

Mounting Type :

Surface Mount

Type :

High-Side, Low-Side

Driver Type :

High and Low Side

Mounting Style :

SMD/SMT

Output Current :

4A

Operating Temperature :

-40°C ~ 125°C (TJ)

Minimum Operating Supply Voltage :

8 V

Input Type :

Non-Inverting

High Side Voltage - Max (Bootstrap) :

90 V

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Driven Configuration :

High-Side and Low-Side

Package Type :

VDSON-8

Channel Type :

Independent

Maximum Operating Supply Voltage :

17 V

Configuration :

Non-Inverting

Input Logic Compatibility :

TTL
