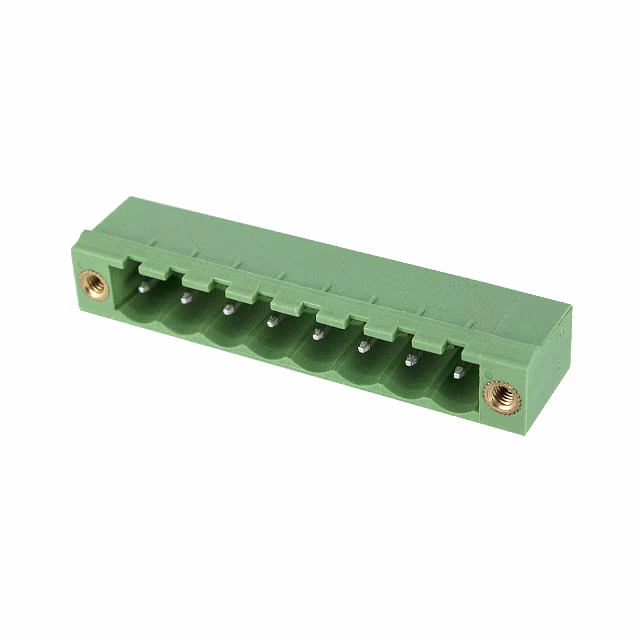

2EHDRM-08P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Rated Current :

15 A

Mounting Type :

Through Hole

Features :

Mating Flange

Termination Style :

Solder

Pitch :

0.200" 5.08mm

Number of Decks :

1

Current - IEC :

18A

Series :

2EHDRM

Packaging :

Box-packed

Package / Case :

P=5.08mm

Manufacturer :

Dinkle Enterprises

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

Voltage - UL :

300 V

Wire Gauge or Range - mm² :

-

Number of Rows :

1

Rated Voltage :

300 V

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Color :

Green

Voltage - IEC :

630 V

Reach Compliance Code :

Compliant

Fastening Method :

Connector

Number of Levels :

1

Operating Temperature :

-40°C ~ 120°C

Package :

Bulk

Product Status :

Active

HTS Code :

8536.69.40.40

Plug Wire Entry :

-

Current - UL :

15 A

Number of Ways :

8

Wire Gauge or Range - AWG :

-

Type :

Header,Male Pin,Covered(4 Sided)

Number of Positions :

8

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Positions Per Level :

8

Contact Mating Finish :

Tin

Number of Poles :

8

ECCN Code :

EAR99

Header Orientation :

90°,Right Angle
