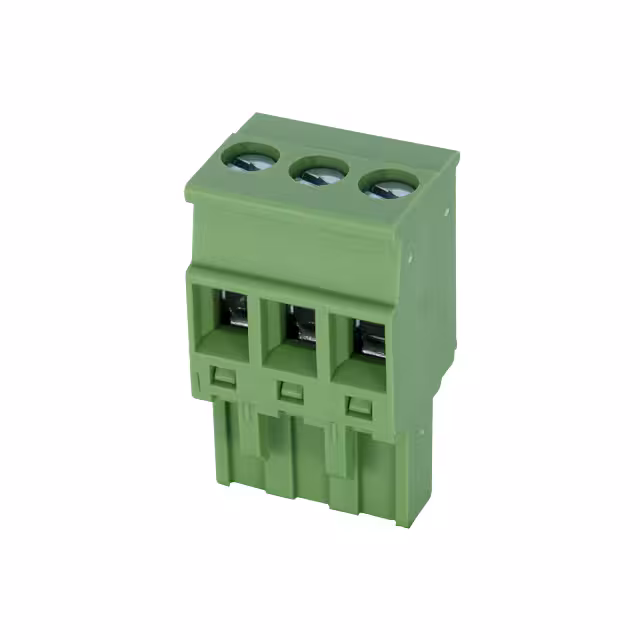

2ESDP-03P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Pbfree Code :

yes

Number of Ways :

3

Type :

Plug, Female Sockets

Wire Cross Section :

2.5 mm2

Package :

Bulk

Number of Decks :

1

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Current - IEC :

18A

Product Status :

Active

HTS Code :

8536.69.40.40

Features :

-

Operating Temperature :

-40°C ~ 120°C

Rated Current :

15 A

Positions Per Level :

3

Number of Levels :

1

Pitch :

0.200 (5.08mm)

Fastening Method :

Screw

Number of Positions :

3

Wire Gauge :

12 AWG

Contact Mating Finish :

Tin

Voltage - UL :

300 V

Current - UL :

15 A

Plug Wire Entry :

90°

Series :

2ESDP

Safety Approval :

CUL; FIMKO; UL; VDE

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

Voltage - IEC :

600 V

Wire Gauge or Range - mm² :

0.2-2.5mm²

RoHS :

Non-Compliant

Wire Gauge or Range - AWG :

12-30 AWG

Termination Style :

Screw - Rising Cage Clamp

Reach Compliance Code :

Compliant

Rated Voltage :

300 V

Header Orientation :

-

Color :

Green
