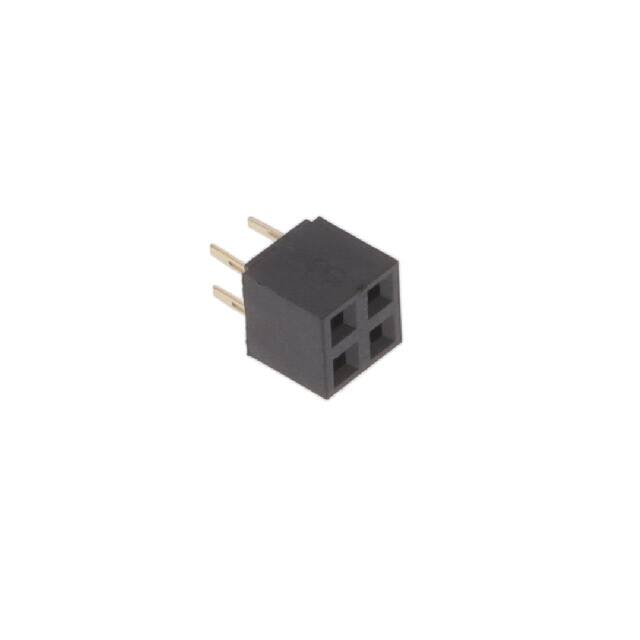

2RS2-04-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Number of Rows :

2

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

Gold

Series :

2RS2

Fastening Type :

Push-Pull

Factory Lead Time :

9 Weeks

Connector Type :

Receptacle

Termination :

Solder

Number of Conductors :

ONE

Number of Positions Loaded :

All

Number of Positions :

4

Dielectric Withstanding Voltage :

1000VAC V

Contact Length - Post :

0.091 2.30mm

Contact Finish Thickness - Mating :

Flash

Style :

Board to Board

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL, CSA

Number Of PCB Rows :

2

Applications :

GENERAL PURPOSE

Operating Temperature :

-40°C~105°C

Contact Type :

Female Socket

RoHS Status :

ROHS3 Compliant

Mounting Option 1 :

LOCKING

Row Spacing - Mating :

0.079 (2.00mm)

Current Rating (Amps) :

1A

Mating Contact Pitch :

0.079 inch

Contact Shape :

Square

Body Depth :

0.169 inch

Insertion Force-Max :

1.39 N

Voltage - Rated :

250VAC

Mounting Type :

Through Hole

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Insulation Color :

Black

Body Length or Diameter :

0.158 inch

Pitch - Mating :

0.079 2.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

5000000000Ohm

Reliability :

COMMERCIAL

Insulation Height :

0.169 4.30mm

JESD-609 Code :

e4

Packaging :

Tube

Body Breadth :

0.165 inch

Insulation Material :

Polyamide (PA), Nylon
