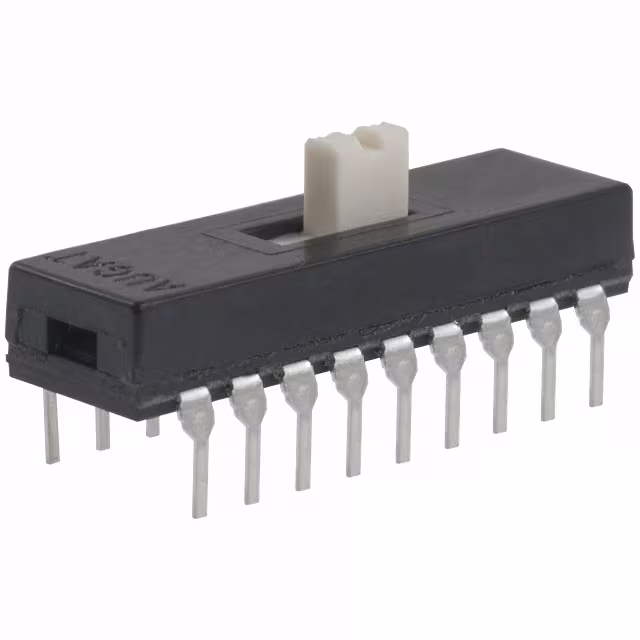

3-1825010-7
Or copy the link below:
- Mfr.Part #
- 3-1825010-7
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE 6PDT 300MA 115V
- Stock
- 612
- In Stock ：
- 612
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Lifecycle Status :
- Production (Last Updated: 1 week ago)
- Current Rating (Max) :
- 0.3(A)
- AC Voltage Rating (Max) :
- 115
- Contact Form :
- DPDT
- Operating Temperature Max Deg. C :
- 80C
- Electrical Life :
- 15,000 Cycles
- Illumination Color :
- -
- Actuator Type :
- Standard
- Mounting Angle :
- Straight
- Package :
- Bulk
- Terminal Type :
- PC Pins
- Voltage Rating (AC) :
- 115 V
- Termination Style :
- PC Pin
- Mechanical Life :
- 15,000 Cycles
- RoHS :
- Compliant
- Contact Configuration :
- DPDT
- Contact Resistance :
- 40mΩ
- Voltage Rating :
- 115V
- Product Status :
- Active
- Orientation :
- Vertical
- Number of Poles :
- 6
- Switching Capacity :
- 400 mW
- Operating Temperature Range :
- -40 → +80°C
- Product Depth (mm) :
- 8.39(mm)
- Actuator Material :
- Polyester
- Termination :
- PC Pins, Solder
- Operating Temperature :
- -40 to 80 °C
- Contact Plating :
- Silver
- ELV :
- Compliant
- Current Rating (Amps) :
- 300mA (AC)
- Schedule B :
- 8536509050
- Packaging :
- Tube
- Max Voltage Rating (AC) :
- 115 V
- Switch Travel :
- 2.79mm
- Mounting Type :
- Through Hole
- Lamp Type :
- -
- Actuator Style :
- Top Slide
- Maximum Operating Temperature :
- +80°C
- Base/Housing Material :
- PCT (Polychlorinated Terphenyl)
- Circuit :
- 6PDT
- Product Type :
- Slide Switches
- Voltage Rating - AC :
- 115V
- Pole Throw Configuration :
- 6PDT
- Lead Free :
- Lead Free
- Flammability Rating :
- UL94 V-0
- Mount :
- PCB, Through Hole
- Contact Finish :
- Silver
- Operating Force :
- 950gf
- Contact Material :
- COPPER ALLOY
- Radiation Hardening :
- No
- Switch Function :
- On-On
- Contact Current Rating :
- 300 mA @ 115 V ac
- Max Current Rating :
- 300 mA
- Operating Temp Range :
- -40C to 80C
- Subcategory :
- Switches
- Length :
- 25.4mm
- REACH SVHC :
- Unknown
- Width :
- 7.37mm
- Minimum Operating Temperature :
- -40°C
- Throw Configuration :
- 6PDT
- Features :
- --
- Contact Timing :
- Shorting (MBB)
- Min Operating Temperature :
- -40 °C
- Dimensions :
- 25.4 x 7.37mm
- Housing Material :
- Polychlorinated
- Color :
- Natural
- Mounting Style :
- Through Hole
- Product Height (mm) :
- 8.31(mm)
- Mounting :
- Through Hole
- Depth :
- 8.39 mm
- Current Rating :
- 300mA (AC)
- Product Length (mm) :
- 25.4(mm)
- Type :
- Switch
- Actuator Length :
- 2.79mm
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Actuator :
- Extended
- Number of Positions :
- 6
- Operating Temperature Min Deg. C :
- -40C
- Contact Style :
- Shorting
- Base Product Number :
- 3-1825010
- Tail Length :
- 4.064 mm
- Max Operating Temperature :
- 80 °C
- Series :
- *
- Datasheets
- 3-1825010-7
