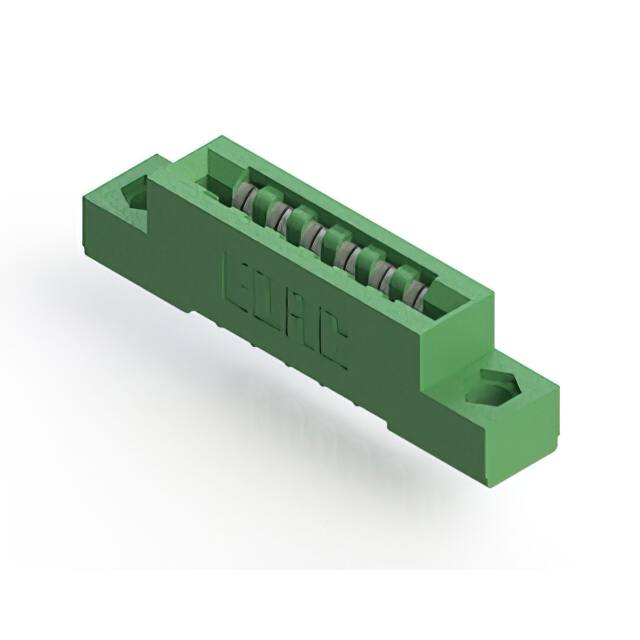

307-006-401-104
Or copy the link below:
- Mfr.Part #
- 307-006-401-104
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 12POS 0.156
- Stock
- 41,586
- In Stock ：
- 41,586
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Base Product Number :
- 307-006
- Contact Finish :
- Tin
- Contact Plating :
- Gold
- Termination :
- Solder Eyelet(s)
- Board Thickness :
- 1.57 mm
- Housing Material :
- Thermoplastic Polyester
- Gender :
- FEMALE
- Features :
- -
- Number of Positions/Bay/Row :
- 6
- Mounting Style :
- Panel Mount
- Material - Insulation :
- Polyester Thermoplastic
- Series :
- 307
- Contact Type :
- Semi Bellows
- Product Status :
- Active
- Read Out :
- Dual
- Operating Temperature :
- -40°C ~ 105°C
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Product :
- Receptacles
- Mounting Type :
- Through Hole
- Contact Finish Thickness :
- -
- Mounting Angle :
- Vertical
- Number of Positions :
- 12
- Contact Material :
- COPPER ALLOY
- Card Type :
- Non Specified - Dual Edge
- Package :
- Bulk
- Pitch :
- 0.156 (3.96mm)
- Number of Rows :
- 2
- Color :
- Green
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.156 (3.96mm) Dia
- Datasheets
- 307-006-401-104
Female Green 0.156 (3.96mm) Copper Alloy 2 Rows Solder Eyelet(s) Tin 12 Positions Polyester Thermoplastic
307-006-401-104 Overview
Mounting type Through Hole is recommended.The 307 indicates the device's series.
307-006-401-104 Features
307 series
307-006-401-104 Applications
There are a lot of EDAC
307-006-401-104 Edgeboard Connectors applications.
- Audio/Video devices
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
