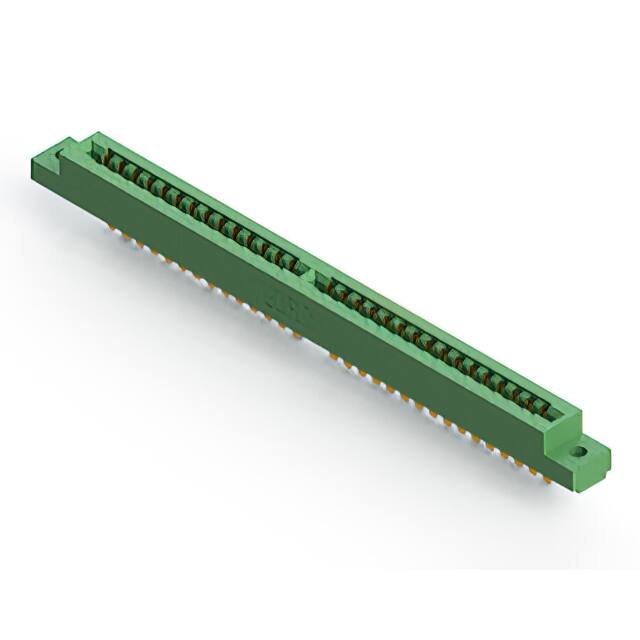

310-030-505-104
Or copy the link below:
- Mfr.Part #
- 310-030-505-104
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 30POS 0.156
- Stock
- 21,042
- In Stock ：
- 21,042
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Material - Insulation :
- Polyester Thermoplastic
- Product Status :
- Active
- Base Product Number :
- 310-030
- Product :
- Receptacles
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.156 (3.96mm) Dia
- Contact Finish :
- Gold
- Features :
- -
- Insulation Resistance :
- 5000 MOhms
- Minimum Operating Temperature :
- - 40 C
- Pitch :
- 3.96 mm
- Contact Finish Thickness :
- 10.0µin (0.25µm)
- Number of Positions :
- 30 Position
- Read Out :
- Single
- Board Thickness :
- 1.57 mm
- Housing Material :
- Thermoplastic Polyester
- Number of Positions/Bay/Row :
- 30
- Mounting Angle :
- Vertical
- Current Rating :
- 5 A
- Color :
- Green
- Mounting Type :
- Through Hole
- Number of Rows :
- 1 Row
- Package :
- Bulk
- Operating Temperature :
- -40°C ~ 105°C
- Gender :
- FEMALE
- Termination :
- Solder Eyelet(s)
- Contact Plating :
- Gold
- Contact Material :
- COPPER ALLOY
- Mounting Style :
- Panel Mount
- Series :
- 310
- Contact Type :
- Semi Bellows
- Card Type :
- Non Specified - Dual Edge
- Maximum Operating Temperature :
- + 105 C
- Termination Style :
- Wire Hole
- Datasheets
- 310-030-505-104
