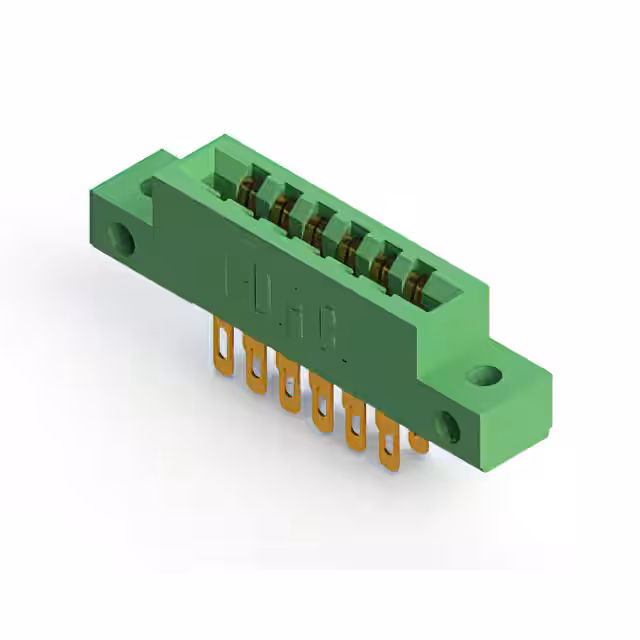

315-012-500-212
Or copy the link below:
- Mfr.Part #
- 315-012-500-212
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 12POS 0.156
- Stock
- 3,635
- In Stock ：
- 3,635
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Product Status :
- Active
- Maximum Operating Temperature :
- + 105 C
- Termination :
- Solder Eyelet(s)
- Pitch :
- 3.96 mm
- Features :
- -
- Contact Plating :
- Gold
- Series :
- 315
- Number of Positions/Bay/Row :
- 6
- Mounting Style :
- Panel
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Contact Finish Thickness :
- 10.0µin (0.25µm)
- Minimum Operating Temperature :
- - 40 C
- Housing Material :
- Thermoplastic Polyester
- Mounting Angle :
- Vertical
- Contact Material :
- COPPER ALLOY
- Gender :
- FEMALE
- RoHS :
- Details
- Flange Feature :
- Flush Mount, Side Opening, Unthreaded, 0.128 (3.25mm) Dia
- Mounting Type :
- Panel Mount
- Board Thickness :
- 1.57 mm
- Package :
- Bulk
- Termination Style :
- Wire Hole
- Insulation Resistance :
- 5000 MOhms
- Number of Rows :
- 2 Row
- Material - Insulation :
- Polyester Thermoplastic
- Number of Positions :
- 12 Position
- Current Rating :
- 5 A
- Contact Type :
- Semi Bellows
- Card Type :
- Non Specified - Dual Edge
- Contact Finish :
- Gold
- Read Out :
- Dual
- Operating Temperature :
- -40°C ~ 105°C
- Color :
- Green
- Datasheets
- 315-012-500-212
You may place an order without registering to Xinshop. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
