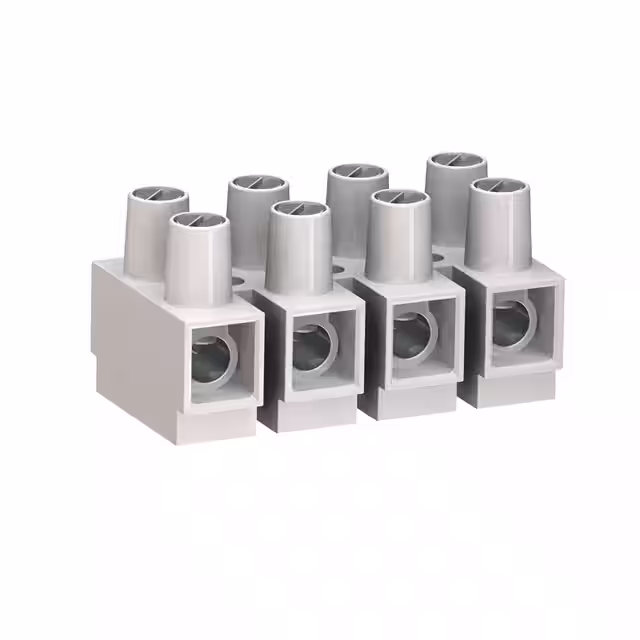

327-FU-HDS/04

Manufacturer :

WECO Electrical Connectors

Product Category :

Barrier Blocks

Product Status :

Active

Termination Method :

Screw

Material - Insulation :

Polyamide (PA), Nylon

Product Height (mm) :

28.5(mm)

Product Length (mm) :

55(mm)

Contact Plating :

Zinc

Mounting Type :

Surface Mount

Bottom Termination :

Closed

Barrier Type :

Enclosed

Pitch :

0.571 (14.50mm)

Current Rating (Max) :

80(A)

Material Flammability Rating :

UL94 V-0

Product Depth (mm) :

30(mm)

Terminal Screw Material :

Steel

Rad Hardened :

No

Number of Contacts :

8(POS)

Mount :

Screw

Number of Rows :

2

Color :

OPAQUE WHITE

Top Termination :

Screws

Mounting Style :

CABLE

Terminal Block Type :

Eurostyle Terminal Strip

Housing Material :

Polyamide

Height :

28.5 mm

Wire Gauge (Min) :

14 AWG

Housing Color :

White

Series :

-

Termination :

Screw

Number of Poles :

4

Manufacturer :

WECO Electrical Connectors

Gender :

F

Number of Wire Entries :

8

Type :

Eurostyle Block

Lead Free :

Lead Free

Terminal Screw Finish :

Zinc

Wire Gauge :

4-14(AWG)

Wire Gauge (Max) :

6 AWG

Contact Pitch (mm) :

14.5(mm)

Number of Circuits :

4

Operating Temperature :

-40°C ~ 100°C

Features :

-

Mounting Hole Diameter :

0.17

Approvals :

CSA, UR

Current Rating (Amps) :

65A

Connection Type :

Screw Clamp

Operating Voltage (Max) :

600V

Number of Contact Rows :

2

Voltage Rating :

600V

RoHS :

yes

Package :

Bulk
