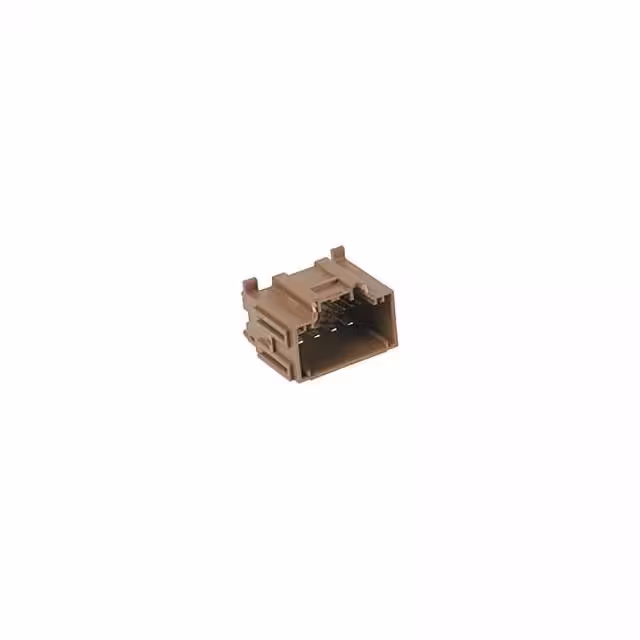

34772-0141

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Accessory Type :

-

Body Orientation :

Straight

Type :

Power

Product Diameter (mm) :

Not Required(mm)

Housing Material :

Thermoplastic

Operating Temperature Min Deg. C :

-40C

RoHS :

Details

Tradename :

Stac64

Brand :

Molex

Base/Housing Material :

Thermoplastic

Manufacturer :

Molex

Operating Temperature :

-40 to 105 °C

Subcategory :

Automotive Connectors

Current Rating :

6 A, 30 A

Pitch :

2.5400 mm

Housing Color :

Gray

Current Rating (Max) :

30/Contact(A)

Operating Temperature Max Deg. C :

105C

Maximum Operating Temperature :

+ 105 C

Product Height (mm) :

28.05(mm)

Product Status :

Active

Termination Method :

Solder

Product Length :

34.04 mm

Product Category :

Automotive Connectors

Voltage Rating Max :

500V

Gender :

Header

Number of Positions :

14 Position

Number of Terminals :

14

Number of Ports :

1(Port)

Pin Count :

14

Mounting :

Through Hole

Operating Temp Range :

-40C to 105C

Minimum Operating Temperature :

- 40 C

Package :

Box

Product Length (mm) :

34.04(mm)

Series :

34772

Number of Contacts :

14(POS)

Mounting Style :

Through Hole

Product Type :

Automotive Connectors

Number of Rows :

2 Row

Contact Plating :

Nickel

Contact Material :

COPPER ALLOY

Color :

Gray

Mounting Angle :

Straight

Application :

Power

Product Depth (mm) :

22.05(mm)

Voltage Rating :

500 V

Orientation :

Vertical

Packaging :

Tray

Termination Style :

Solder Pin

Product :

Headers
