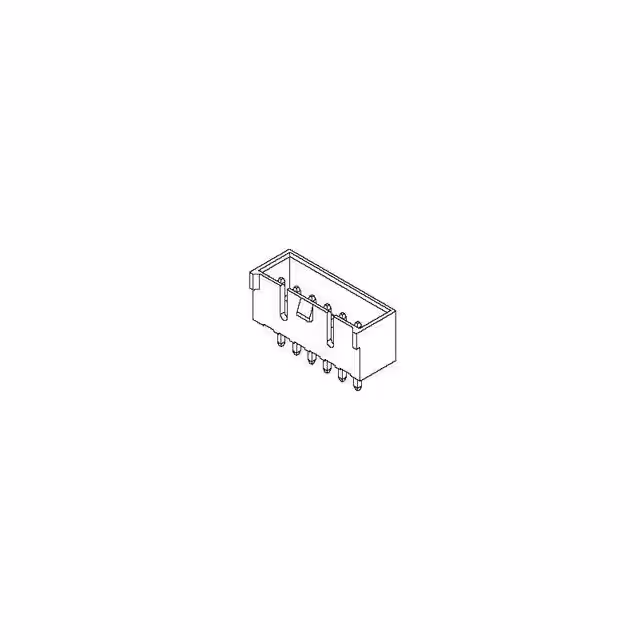

35312-0560

Manufacturer :

Molex

Product Category :

Unclassified

Termination Post Length :

3.4 mm

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 105 C

Type :

Shrouded Header

Voltage Rating Max :

250V

Product Height (mm) :

7(mm)

Termination Style :

Solder Pin

Number of Contacts :

5(POS)

Current Rating :

3 A

Accessory Type :

-

Gender :

HDR

Product Type :

Headers and Wire Housings

Contact Material :

Brass

Flammability :

94V-0

Contact Resistance Max :

20(mohm)

Tradename :

SPOX

Contact Gender :

Pin (Male)

Product Category :

Headers and Wire Housings

Mounting Style :

Through Hole

RoHS Status :

RoHS Compliant

Contact Type :

-

Housing Material :

Nylon 6/6

Flammability Rating :

UL 94 V-0

Product Depth (mm) :

6.5(mm)

Contact Plating :

Tin

Termination Method :

Solder

Product :

Headers

Product Length (mm) :

14.96(mm)

RoHS :

Details

Voltage Rating :

250 V

Application :

Signal

Mounting Angle :

Straight

Brand :

Molex

Body Orientation :

Straight

Operating Temp Range :

-40C to 105C

Number of Contact Rows :

1

Manufacturer :

Molex

Pitch (mm) :

2.5(mm)

Current Rating (Max) :

3/Contact(A)

Number of Positions :

5 Position

Packaging :

Bag-packed

Number of Rows :

1 Row

Series :

35312

Housing Color :

Natural

Orientation :

Vertical

Subcategory :

Headers and Wire Housings

Pitch :

2.5 mm

Product Status :

Active
