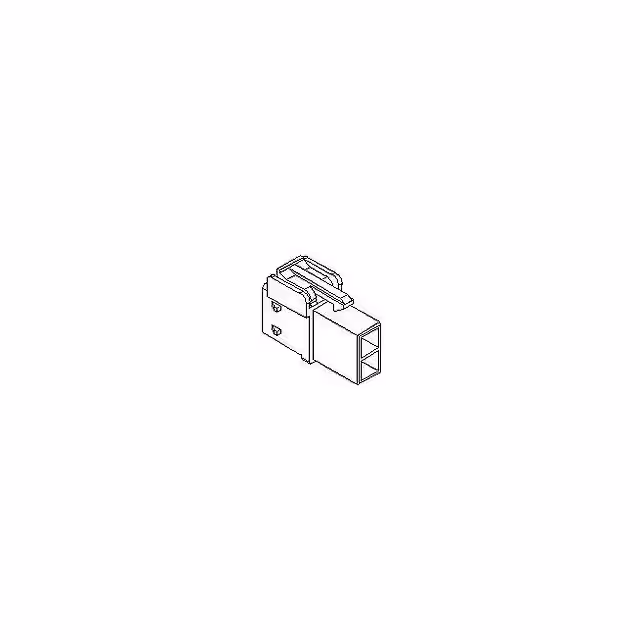

35525-0200

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Housings

Termination Type :

Crimp

Type :

Housing

Manufacturer :

Molex

Number of Rows :

2

Min Operating Temperature :

-40 °C

Contact Arrangement :

S0P2

Orientation :

Straight

Housing Color :

Natural

Mount :

CABLE

Body Orientation :

Straight

Glow Wire Compliant :

Non-Compliant

Product Status :

Active

Product Depth (mm) :

19.9(mm)

RoHS :

Compliant

Current Rating :

11 A

ECCN Code :

EAR99

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Contact Material :

NOT SPECIFIED

REACH SVHC :

No SVHC

Series :

*

Max Operating Temperature :

120 °C

Mounting Type :

CABLE

Number of Positions :

2

Pitch (mm) :

Not Required(mm)

Product Height (mm) :

28.6(mm)

Operating Temp Range :

-40C to 120C

Number of Contacts :

2(POS)

Pbfree Code :

yes

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Country of Origin :

KR

Subcategory :

Headers and Edge Type Connectors

HTS Code :

8536.69.40.40

Reliability :

COMMERCIAL

Package :

Box

Number of Contact Rows :

2

Mounting Style :

Straight

Pitch :

6.2 mm

Reach Compliance Code :

Compliant

Termination :

Crimp

Packaging :

Bag

Mounting Option 1 :

LOCKING

Total Number of Contacts :

2

Insulator Color :

Natural

Connector Type :

BOARD CONNECTOR

Contact Gender :

FEMALE

Gender :

PL

Housing Material :

Polyester

Product Length (mm) :

11(mm)

Mixed Contacts :

yes
