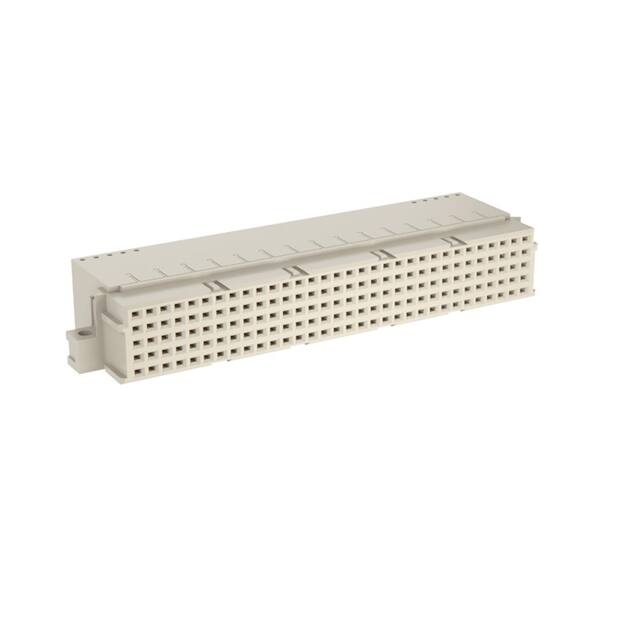

374380

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

Reliability :

COMMERCIAL

Connector Type :

BOARD EURO CONNECTOR

PCB Contact Row Spacing :

2.54 mm

Terminal Length :

0.118 inch

Total Number of Contacts :

160

Number Of PCB Rows :

5

Option :

GENERAL PURPOSE

Reach Compliance Code :

Compliant

Mounting Style :

RIGHT ANGLE

Mixed Contacts :

No

IEC Conformance :

No

MIL Conformance :

No

Insertion Force-Max :

.695 N

Subcategory :

Headers and Edge Type Connectors

Durability :

400 Cycles

Body/Shell Style :

PLUG

Mounting Type :

BOARD

Body Depth :

0.949 inch

Dielectric Withstanding Voltage :

1400VAC V

Manufacturer :

ERNI

Filter Feature :

No

Contact Gender :

FEMALE

Mounting Option 1 :

LOCKING

Contact Material :

NOT SPECIFIED

Contact Style :

SQ PIN-SKT

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.618 inch

Contact Resistance :

20 mΩ

Mating Contact Pitch :

0.1 inch

Additional Feature :

RoHS Compliant

Rated Current (Signal) :

2 A

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Termination Type :

Solder

Reference Standard :

UL

Name of Rows Loaded :

A,B,C,D,E

Mating Contact Row Spacing :

0.1 inch

DIN Conformance :

yes

Terminal Pitch :

2.54 mm

Insulation Resistance :

10000000000 Ω

PCB Contact Pattern :

RECTANGULAR
