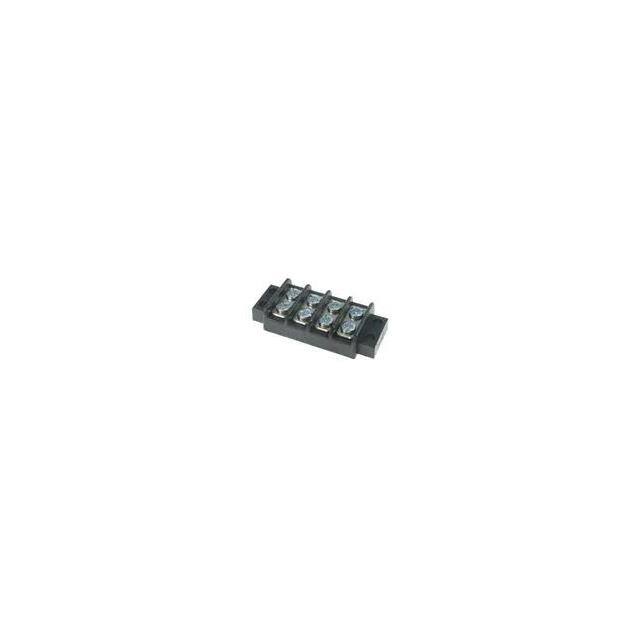

38780-0104

Manufacturer :

Molex

Product Category :

Barrier Blocks

RoHS :

Compliant

Rated Voltage :

300V

Subcategory :

Terminal Blocks

Flammability Rating :

UL94 V-0

Number of Ways :

4

Width :

28.6 mm

Product :

Barrier Terminal Blocks

Material :

Thermoplastic

Lead Free :

Contains Lead

Contact Material :

Steel

Approvals :

CSA, UL

Housing Color :

Black

Wire/Cable Gauge :

24 AWG

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Number of Contacts :

8

Termination Method :

Screw

Orientation :

Straight

Min Operating Temperature :

0 °C

HTS Code :

8536.69.40.40

Connector Type :

Terminal Block

Depth :

14 mm

Pitch :

11.1100 mm

Mounting :

Panel Mount

Additional Feature :

Thermoplastic

Termination :

Screw

Maximum Operating Temperature :

+ 110 C

Wire Gauge (Min) :

14 AWG

Number of Decks :

1

Manufacturer :

Molex

Max Operating Temperature :

110 °C

Series :

38780

Housing Material :

Thermoplastic

Product Type :

Barrier Terminal Blocks

Number of Circuits :

4

Length :

63.5 mm

Brand :

Molex

Base/Housing Material :

Thermoplastic

Terminal Material :

Steel

Voltage Rating :

300 V

Body Orientation :

Straight

Number of Wire Entries :

8

Product Length :

63.5 mm

Color :

Black

Type :

Wire-to-Board

REACH SVHC :

Unknown

Rated Current :

15A

Number of Poles :

4

Insulation Material :

Thermoplastic

Contact Plating :

Zinc

Number of Positions :

4

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

0 C

Number of Rows :

2

Mount :

Chassis, Panel

Mounting Type :

CABLE

Current Rating :

20 A

ECCN Code :

EAR99

Wire Gauge (Max) :

22 AWG

Product Category :

Barrier Terminal Blocks

Fastening Method :

Screw

Mounting Style :

Through Hole
