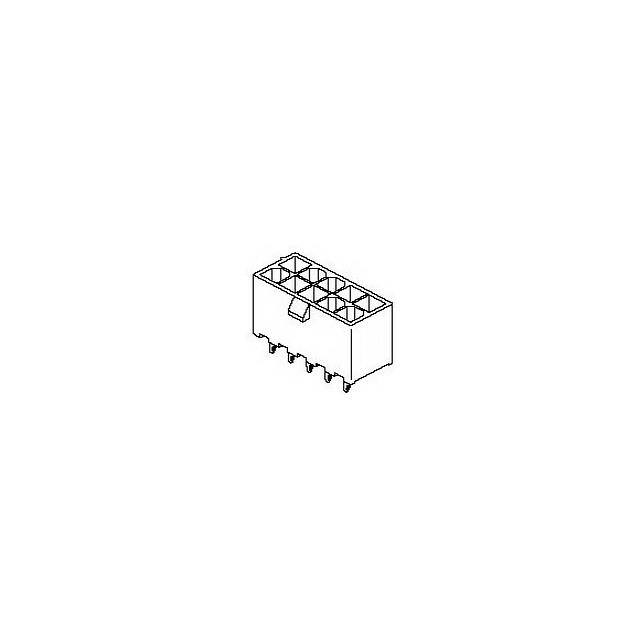

39-28-1143

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Max Voltage Rating (DC) :

600.6 kV

Connector Type :

Power, Rectangular

Maximum Operating Temperature :

+ 105 C

Voltage Rating (DC) :

600 V

Contact Plating :

Tin-Copper

Gender :

Header

Color :

Natural

Board contact surface :

Tin

Halogen Free :

Low Halogen

Number of Ports :

1(Port)

Termination Post Length :

3.5 mm

Contact Material :

Brass

Number of Rows :

2

Voltage Rating (AC) :

600 V

Product Diameter (mm) :

Not Required(mm)

Flammability Rating :

UL 94 V-2

Manufacturer :

Molex

Nominal current :

9A

REACH SVHC :

Unknown

Accessory Type :

-

Plating :

Tin

Test Voltage :

1.5 kV

Product Height (mm) :

12.8(mm)

Max Current Rating :

3 A

Tradename :

Mini-Fit Jr.

Current Rating :

9.0A

Insulation Resistance :

1 GΩ

Connector System :

Wire to Board

Mounting Angle :

Straight

Product Length (mm) :

31.4(mm)

Nominal voltage :

600V

Row Spacing :

4.2 mm

Contact Gender :

Pin (Male)

Package / Case :

Through Hole,P=4.2mm

Housing Material :

Nylon 6/6

Operating Temp Range :

-40C to 105C

Features :

+ locking mechanism

Max. temperature :

+105°C

Length :

101.19 mm

Total number of pins :

14

Voltage Rating Max :

600V

Termination :

Solder

Schedule B :

8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/85

Series :

MINI-FIT

Product Type :

Headers and Wire Housings

Body Orientation :

Straight

Lifecycle Status :

Production (Last Updated: 2 years ago)

Content :

1pc(s)

Number of Contacts :

14POWER(POS)

Product Category :

Headers and Wire Housings

Operating Temperature Min Deg. C :

-40C

Pitch :

4.2000 mm

Number of Terminals :

14

Termination Method :

Solder

Number of Positions :

14 Position

Contact Type :

-

Number of Poles :

14

Housing Color :

Natural

Voltage Rating :

600 V

Connector contact surface :

Tin

Mount :

PCB, Through Hole

Max Operating Temperature :

105 °C

Number of Circuits :

14

Material :

Nylon

Number of Contact Rows :

2

Product Status :

Active

Mounting :

Through Hole

Brand :

Molex

RoHS :

Details

Lead Free :

Lead Free

Packaging type :

Bag

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mounting Type :

Through Hole

Case material :

Nylon (NL)

Pitch (mm) :

4.2(mm)

CS :

4.2mm

Mounting Style :

Through Hole

Subcategory :

Headers and Wire Housings

Radiation Hardening :

No

Application :

Power

Number of Pins :

14

Connection :

Soldering

Product Length :

31.4 mm

Glow Wire Compliant :

Non-Compliant

Depth :

2.34 mm

Min Operating Temperature :

-40 °C

Current Rating (Max) :

9/Contact(A)

Minimum Operating Temperature :

- 40 C

Number of Lines :

2

Height :

8.13 mm

Country of Origin :

US

Contact Resistance Max :

10(mohm)

Operating Temperature :

-40 to 105 °C

RoHS Status :

RoHS Compliant

Product Depth (mm) :

11(mm)

Working Voltage :

600 V

Lead Pitch :

4.2 mm

Termination Style :

Solder Pin

Type :

Wire to Board

Approvals :

CSA, TUV, UL

Packaging :

Bag-packed

Flammability :

94V-2

No. of rows :

2

Min. temperature :

-40°C

Manufacturer part # :

39281143

Operating Temperature Max Deg. C :

105C

Base/Housing Material :

Nylon 66

Orientation :

Vertical

Nominal current - rounded value :

9A

Contact Resistance :

10 MΩ

Product :

Headers
