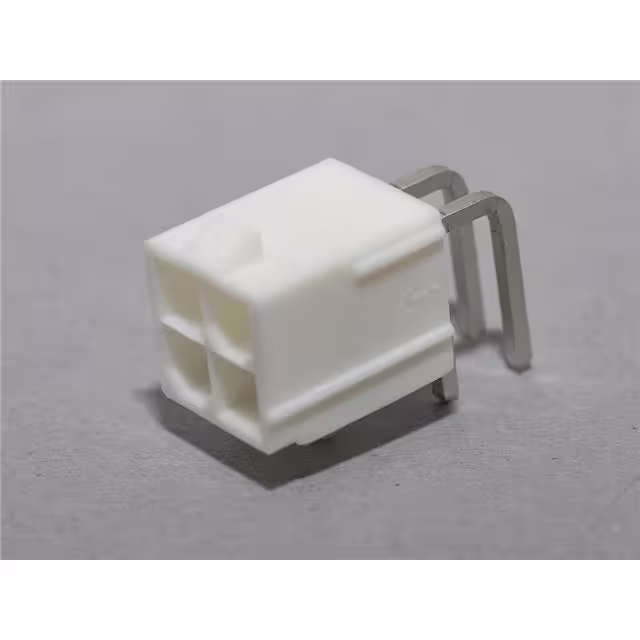

39-30-0040
Or copy the link below:
- Mfr.Part #
- 39-30-0040
- Manufacturer
- Molex
- Package / Case
- Through Hole
- Datasheet
- Download
- Description
- MINIFIT JR RA DR /PEGS TIN V-0 4
- Stock
- 10,070
- In Stock ：
- 10,070
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mounting :
- Through Hole
- Number of Positions :
- 4
- RoHS :
- Compliant
- Min. temperature :
- -40°C
- Orientation :
- RIGHT ANGLE
- Type :
- Molex MOL Power and Signal Sol.
- Contact Resistance :
- 10 MΩ
- RoHS-compliant :
- yes
- Number of Rows :
- 2
- Number of Contacts :
- 4
- Nominal current - rounded value :
- 13A
- Content :
- 1pc(s)
- Height :
- 11.4 mm
- Packaging :
- Bag-packed
- Connector contact surface :
- Tin
- Glow Wire Compliant :
- Non-Compliant
- Pitch :
- 0.165" 4.20mm
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40 °C
- Max Voltage Rating (AC) :
- 600 V
- Application :
- Power
- Base/Housing Material :
- Polyamide 66
- Flammability :
- 94V-0
- Voltage Rating (DC) :
- 600 V
- ELV :
- Compliant
- Max. temperature :
- +105°C
- Packaging type :
- Bag
- Manufacturer part # :
- 39300040
- Max Current Rating :
- 8 A
- Test Voltage :
- 1.5 kV
- Package / Case :
- Through Hole
- Color :
- Natural
- Connection :
- Soldering
- Connector Type :
- Header
- Schedule B :
- 8536694040, 8536694040/8536694040, 8536694040/8536694040/8536694040, 8536694040/8536694040/8536694040/8536694040
- Product Status :
- Active
- Mounting Type :
- Through Hole，Right Angle
- Termination Method :
- Solder
- Voltage Rating :
- 600 V
- Total number of pins :
- 4
- Radiation Hardening :
- No
- Number of Poles :
- 4
- REACH SVHC :
- Unknown
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Current Rating :
- 8.0A
- No. of rows :
- 2
- Body Orientation :
- RIGHT ANGLE
- Max Operating Temperature :
- 105 °C
- Insulation Resistance :
- 1 GΩ
- Row Spacing :
- 0.165"(4.20mm)
- Connector System :
- Wire to Board
- Housing Material :
- Nylon
- Contact Plating :
- Tin
- Contact Type :
- Male Pin
- Board contact surface :
- Tin
- Material :
- Nylon
- Lead Pitch :
- 4.2 mm
- Nominal current :
- 13A
- Features :
- + locking mechanism
- Operating Temperature :
- -40 to 105 °C
- Gender :
- Header
- Lead Free :
- Lead Free
- Product Length :
- 9.6 mm
- RoHS Status :
- RoHS Compliant
- Voltage Rating (AC) :
- 600 V
- Length :
- 9.6 mm
- Termination :
- Solder
- Nominal voltage :
- 600V
- Housing Color :
- Natural
- Country of Origin :
- US
- Contact Gender :
- Male
- Depth :
- 19.4 mm
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Halogen Free :
- Low Halogen
- Number of Pins :
- 4
- Mount :
- Through Hole
- CS :
- 4.2mm
- Number of Lines :
- 2
- Number of Circuits :
- 4
- Case material :
- Nylon (NL)
- Contact Material :
- Brass
- Series :
- Mini-Fit Jr
- Datasheets
- 39-30-0040
39300040 datasheet pdf and Unclassified product details from MOLEX stock available at Xinshop
39300040 Description
39300040 is a rectangular connector-Headers, Male Pins. Rectangular Connectors of this 39300040 are engineered to optimize signal integrity in applications with limited internal space. The rectangular Connector header contains male pins within a plastic base and is used to be mated with a rectangular cable connector or a female socket header for board-to-board connection. These come in a variety of position and pitch options, with some having a breakaway option to manually change the position count with ease. Some are shrouded with 1 to 4 walls or unshrouded. Mounting types include panel mount, board edge, stacking, surface mount, and through-hole.
39300040 Features
Circuits (Loaded) 4
Circuits (maximum) 4
Color - Resin Natural
Pitch-Mating Interface 4.20mm
Pitch - Termination Interface 4.20mm
Plating min - Mating 2.540µm
39300040 Applications
Automotive
Infotainment & cluster
Industrial
Grid infrastructure
Personal electronics
Gaming
