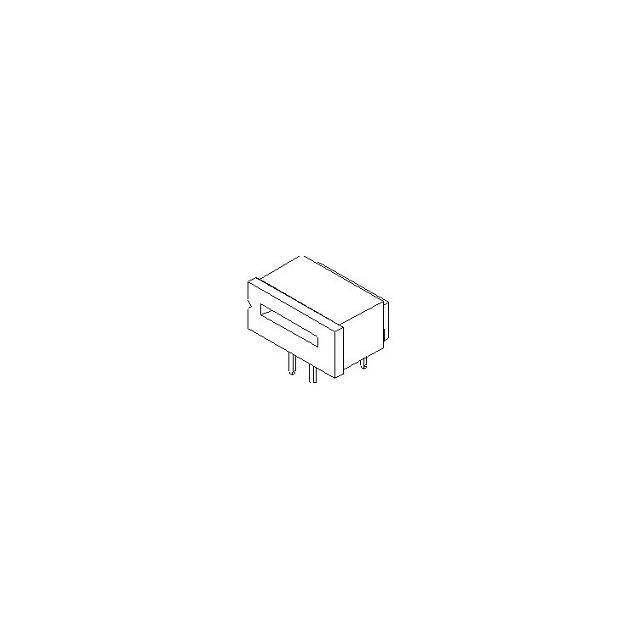

39-53-2114
Or copy the link below:
- Mfr.Part #
- 39-53-2114
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.25 FFC ZIF HSG ASSY 11CKT
- Stock
- 31
- In Stock ：
- 31
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Mounting Style :
- Through Hole
- Product Length :
- 19.5 mm
- Maximum Operating Temperature :
- +80°C
- Number Of PCB Rows :
- 2
- Contact Gender :
- Socket
- Additional Feature :
- ROHS COMPLIANT, TRAY PACKAGING
- Pbfree Code :
- yes
- PCB Contact Row Spacing :
- 5.0038 mm
- Gender :
- FEMALE
- Brand :
- Molex
- Base/Housing Material :
- PBT (Polybutylene Terephthalate)
- DIN Conformance :
- No
- Manufacturer :
- Molex
- HTS Code :
- 8536.69.40.51
- Number of Contacts :
- 11
- Number of Positions :
- 11 Position
- Insertion Force-Max :
- ZIF N
- Mounting :
- Through Hole
- Accessory Type :
- -
- ECCN Code :
- EAR99
- Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL 94 V-0
- Factory Lead Time :
- 10 Weeks
- Terminal Pitch :
- 1.25 mm
- Mating Contact Pitch :
- 0.049 inch
- IEC Conformance :
- No
- Housing Material :
- PBT
- Contact Plating :
- Tin-Bismuth
- Operating Temperature :
- -20 to 80 °C
- Withdrawl Force-Min :
- ZIF N
- Packaging :
- Tray
- Actuator Type :
- Slider
- Termination Style :
- Through Hole
- Termination Method :
- Solder
- Total Number of Contacts :
- 11
- Product :
- Board Mount
- RoHS :
- Details
- Reach Compliance Code :
- Compliant
- Compliance :
- UL
- Mounting Angle :
- RIGHT ANGLE
- Mounting Type :
- Through Hole
- Subcategory :
- FFC and FPC Connectors
- Product Type :
- FFC and FPC Connectors
- Wire/Cable Type :
- FFC/FPC
- Body Depth :
- 0.386 inch
- Contact Pattern :
- RECTANGULAR
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 1
- Housing Color :
- Natural
- Pitch :
- 2.5000 mm
- Body Breadth :
- 0.213 inch
- Product Category :
- FFC and FPC Connectors
- Body Orientation :
- RIGHT ANGLE
- PCB Contact Pattern :
- STAGGERED
- Minimum Operating Temperature :
- -20°C
- Current Rating :
- 1A
- Mounting Option 1 :
- LOCKING
- Contact Material :
- Phosphor Bronze
- UL Flammability Code :
- 94V-0
- Contact Style :
- BELLOWED TYPE
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Connector Type :
- FFC/FPC CONNECTOR
- Contact Location :
- Top Contact
- Terminal Length :
- 0.138 inch
- Voltage Rating :
- 200 V
- Termination Type :
- ZIF Top Contact
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Series :
- Easy-On
- Datasheets
- 39-53-2114
Easy-On Series Tray 2.5000 mm 11 Position Positions Through Hole -20 to 80 °C
39-53-2114 Overview
It comes in FFC/FPC CONNECTOR packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Easy-On Series.Moreover, there are a number of other features, including ROHS COMPLIANT, TRAY PACKAGING, to name just a few.In this case, the device operates at -20 to 80 °C Operating Temperature.
39-53-2114 Features
Easy-On series
39-53-2114 Applications
There are a lot of Molex
39-53-2114 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
