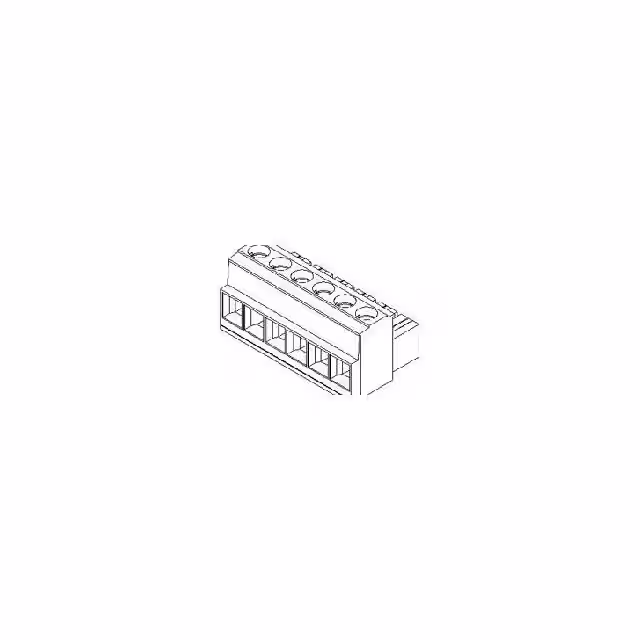

39421-0005

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Brand :

Molex

Contact Material :

Brass

Wire Cross Section :

21.2 mm2

Mounting Style :

CABLE

Termination Method :

Screw

Rated Voltage :

600 V

Material :

Brass

Product Height (mm) :

33.3(mm)

Additional Feature :

PBT

Rated Current :

85 A

Fastening Method :

Screw

Current Rating (Max) :

85/Contact(A)

Mounting Angle :

Horizontal

Component Type :

PLUG

Series :

39421

Number of Contacts :

5(POS)

Product Length (mm) :

61(mm)

Number of Circuits :

5

Package :

Box

Wire Gauge :

8-10(AWG)

Operating Voltage (Max) :

600V

Mount :

CABLE

Product Depth (mm) :

40(mm)

Tradename :

EuroMax

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Body Orientation :

RIGHT ANGLE

RoHS :

Non-Compliant

Product Status :

Active

Wire Gauge (Min) :

14 AWG

Gender :

F

Number of Positions :

5

Pbfree Code :

yes

Subcategory :

Terminal Blocks

HTS Code :

8536.69.40.40

Type :

Eurostyle Block

Number of Ways :

5

Pitch :

12 mm

Housing Color :

Black

Current Rating :

85 A

Wire Gauge (Max) :

3 AWG

Contact Pitch (mm) :

12(mm)

Mounting Type :

CABLE

Orientation :

Horizontal

Color :

Black

Packaging :

Bulk

Voltage Rating :

600 V

Panel Mount :

No

Rad Hardened :

No

Termination :

Screw

Number of Decks :

1

Contact Plating :

Tin

Product Category :

Pluggable Terminal Blocks

Product Type :

Pluggable Terminal Blocks

Number of Rows :

1

Manufacturer :

Molex

Reach Compliance Code :

Compliant

Housing Material :

Polyester

ECCN Code :

EAR99

Number of Contact Rows :

1
