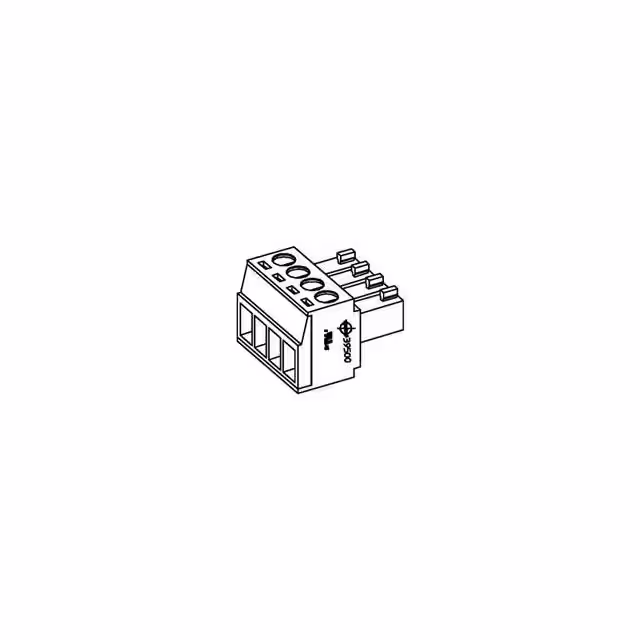

39500-5012

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Current Rating :

8 A

Contact Material :

Brass

Body Orientation :

RIGHT ANGLE

Mounting Style :

CABLE

Mount :

Cable, Free Hanging

Lifecycle Status :

Production (Last Updated: 2 years ago)

Country of Origin :

US

Gender :

F

Termination Style :

Screw

Contact Pitch (mm) :

3.5(mm)

Wire Gauge (Max) :

30 AWG

Wire Gauge :

16-30(AWG)

Product Category :

Pluggable Terminal Blocks

Termination Method :

Screw

Operating Temp Range :

-40C to 105C

Number of Circuits :

12

Max Operating Temperature :

115 °C

Pitch :

3.5 mm

Brand :

Molex

Number of Contacts :

12(POS)

Product Type :

Pluggable Terminal Blocks

Color :

Green

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Number of Rows :

1

Component Type :

PLUG

Number of Positions :

12 Position

Termination :

Screw

Product Height (mm) :

11.1(mm)

Product Status :

Active

Tradename :

Eurostyle

Packaging :

Bulk

Panel Mount :

No

Product :

Plugs

Housing Material :

Polyamide 6/6

Manufacturer :

Molex

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

HTS Code :

8536.69.40.40

Number of Positions Per Level :

12

Operating Voltage (Max) :

300V

Orientation :

Horizontal

Voltage :

300 V

Mounting Angle :

Horizontal

Current Rating (Max) :

8/Contact(A)

Wire Gauge (Min) :

16 AWG

Rad Hardened :

No

Series :

39500

Package :

Box

Current :

8 A

Type :

Eurostyle Block

RoHS :

Details

Contact Plating :

Tin

Reach Compliance Code :

not_compliant

Voltage Rating :

300 V

Number of Contact Rows :

1

Min Operating Temperature :

-40 °C

Product Depth (mm) :

15.5(mm)

ECCN Code :

EAR99

Number of Levels :

1

Subcategory :

Terminal Blocks

Product Length (mm) :

42.8(mm)

Housing Color :

Green

Connection Method :

Screw
