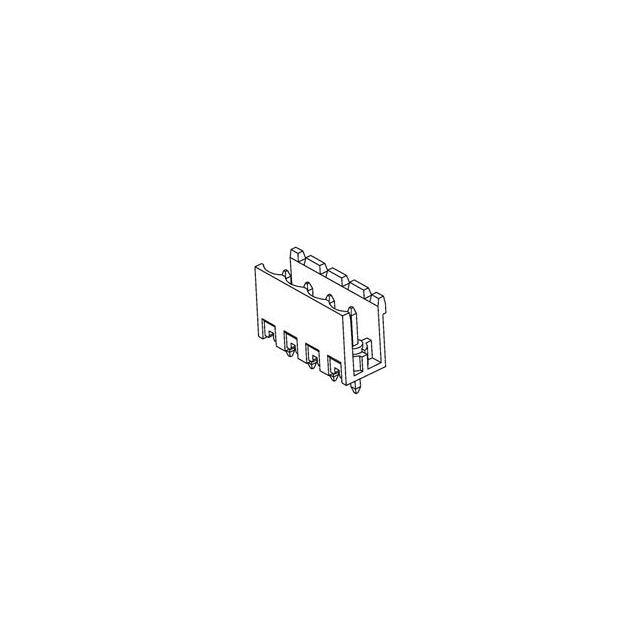

39531-0004

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Termination Method :

Solder

Mounting Style :

Through Hole

Housing Color :

Black

Voltage Rating :

300 V

Package / Case :

SMD

Country of Origin :

US

RoHS Status :

RoHS Compliant

Number of Circuits :

4

Body Orientation :

Straight

Min Operating Temperature :

-40 °C

Contact Plating :

TIN OVER NICKEL

Packaging :

Bag-packed

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Housing Material :

Polyamide 4/6

Type :

Euro Block

Component Type :

PCB Header

Pitch (mm) :

5.08(mm)

Pitch :

5.08 mm

Max Operating Temperature :

105 °C

Number of Positions :

4

Number of Contact Rows :

1

Product Height (mm) :

12(mm)

REACH SVHC :

No SVHC

Lifecycle Status :

Production (Last Updated: 2 years ago)

Orientation :

Vertical

Contact Material :

Brass

Number of Contacts :

4(POS)

Max Voltage Rating (DC) :

300.3 kV

Halogen Free :

Low Halogen

Gender :

HDR

Termination :

Solder

Panel Mount :

No

RoHS :

Compliant

Product Status :

Active

Current Rating (Max) :

15/Contact(A)

Voltage Rating Max :

300VDC/300VAC

Product Length (mm) :

22.32(mm)

Operating Temp Range :

-40C to 105C

Number of Rows :

1

Current Rating :

15 A

Contact Resistance Max :

8(mohm)

Mount :

Through Hole

ELV :

Compliant

Color :

Black

Product Depth (mm) :

8.3(mm)
