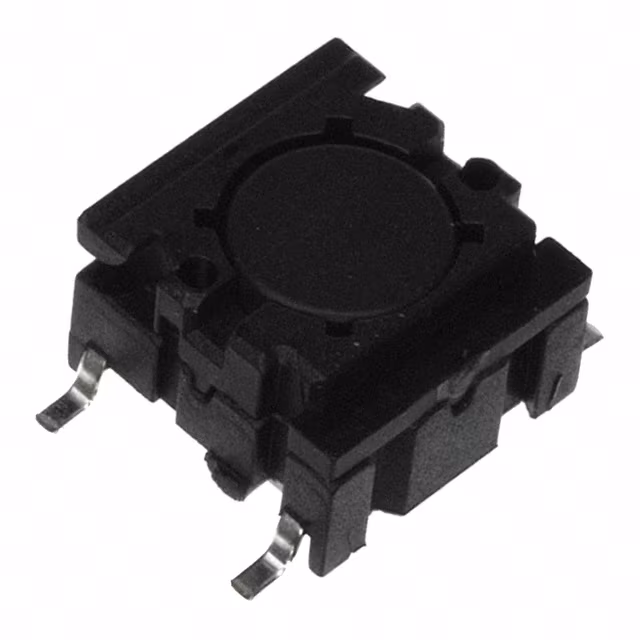

3ASH9

Manufacturer :

MEC switches

Product Category :

Illumination Color :

-

Color :

Black

Max Operating Temperature :

160 °C

Current Rating (Max) :

0.05(A)

Lamp Type :

-

Illumination Type :

Not Required

ECCN :

EAR99

Actuator Style :

Button

Product Depth (mm) :

15.1(mm)

Travel :

1 mm

Termination Style :

Gull Wing Lead

Operating Temperature Range :

- 40 C to + 160 C

Minimum Operating Temperature :

- 40 C

Itar Registered :

No

Height :

6.4 mm

Type :

Cap

Mounting Style :

SMD/SMT

Tradename :

multimec

Power Rating :

-

Mechanical Life :

10000000

Switch Function :

OFF - (ON)

Series :

3A

Throw Configuration :

SPST

RoHS :

Details

Maximum Operating Temperature :

+ 160 C

Contact Form :

SPST

Pole Throw Configuration :

SPST

Operating Force :

3.5 N

IP Rating :

IP67

Mount :

Surface Mount

Switch Function Configuration :

OFF Mom

Max Voltage Rating (DC) :

24 V

Voltage Rating (VDC) :

24(V)

Actuator :

Round

Current Rating :

50 mA

Terminal Type :

Gull wing

Operating Temp Range :

-40C to 160C

Product Length (mm) :

15.1(mm)

Orientation :

Straight

Body Orientation :

Straight

Min Operating Temperature :

-40 °C
