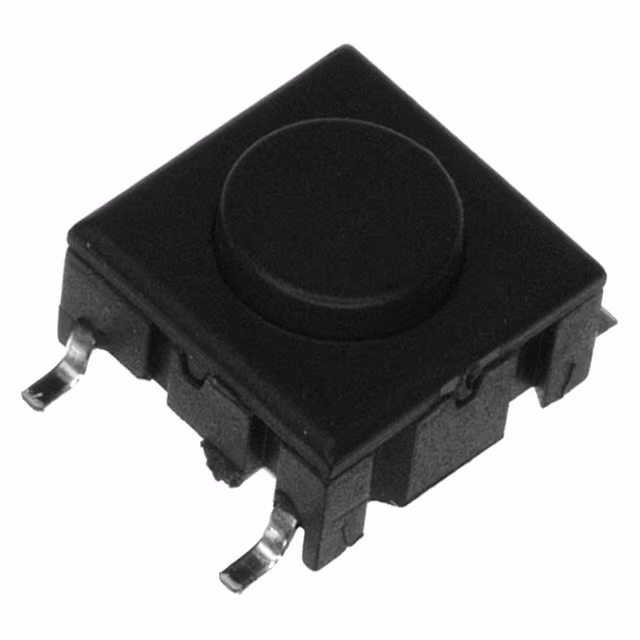

3CSH9

Manufacturer :

MEC switches

Product Category :

Contact Material :

Gold

Tradename :

multimec

Contact Form :

SPST

Actuator Length (mm) :

1.3(mm)

Series :

3C

Switch Function :

OFF - (ON)

Mechanical Life :

10,000,000 Cycles

Operating Force :

300gf

Illumination Voltage (Nominal) :

-

Illumination Color :

-

Lamp Type :

-

Width :

10.1 mm

ECCN :

EAR99

Termination Style :

Gull Wing Lead

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

6.4 mm

Product Depth (mm) :

14(mm)

Mounting Type :

Surface Mount

Illumination :

Non-Illuminated

Terminal Type :

Gull wing

Actuator Length, Right Angle :

-

IP Rating :

IP67

Pole Throw Configuration :

SPST

Product Height (mm) :

6.4(mm)

Contact Plating :

Silver

Body Orientation :

Straight

Actuator Material :

Polyphenylene Sulfide (PPS)

Current Rating :

50 mA

Features :

Sealed - Flux Protection

Actuator Orientation :

Top Actuated

Switch Travel :

1.00mm

Actuator Type :

Standard

Packaging :

Tube

Length :

10.1 mm

Itar Registered :

No

Operating Temp Range :

-40C to 160C

Product Length (mm) :

10.1(mm)

Current Rating (Max) :

0.05(A)

Illumination Type :

Not Required

Voltage Rating (VDC) :

24(V)

Actuator Height off PCB, Vertical :

6.40mm

Ingress Protection :

IP67 - Dust Tight, Waterproof

Contact Rating @ Voltage :

0.05A @ 24VDC

Illumination Type, Color :

-

Outline :

10.10mm x 10.10mm

Color :

Black

Mounting Style :

SMD/SMT

Actuator :

Round

Actuator Style :

Round Button

Switch Function Configuration :

N.O.

Other Names :

679-2212

Circuit :

SPST-NO

Operating Temperature :

-40°C ~ 160°C

Power Rating :

-

RoHS :
