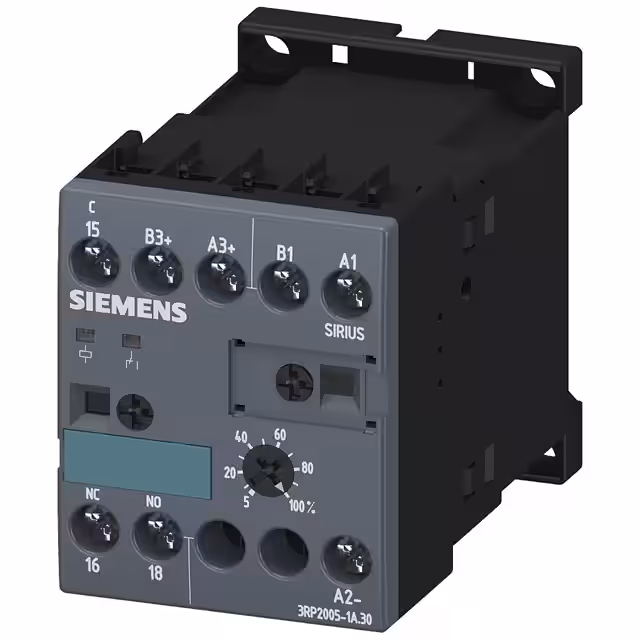

3RP2005-1AP30

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Contact Configuration :

SPDT

Electrical lifespan :

100000

Package :

Box

Terminal Type :

Screw

Minimum Operating Temperature :

-25°C

Relay Type :

Mechanical Relay

Rated control supply voltage at DC :

24 - 24

Base Product Number :

3RP2005

Reach Compliance Code :

Unknown

Min. temperature :

-25°C

Delay Time :

0.05 Sec ~ 100 Sec

Dim :

(W x H x D) 45 x 57 x 73 mm

Rated control supply voltage at AC 50 Hz :

200 - 240

Content :

1pc(s)

Series :

SIRIUS

Supply Voltage :

110 → 240 V ac, 24V ac/dc

Function :

Programmable (Multi-Function)

Power Supply :

External

Width :

45

Circuit :

SPDT (1 Form C)

Voltage type for actuating :

AC/DC

Depth :

73mm

Maximum Operating Temperature :

+60°C

Timing Initiate Method :

Input Voltage

Max. temperature :

+60°C

Product Status :

Active

Termination Style :

Screw Terminal

Height :

57mm

Type of electric connection :

Screw connection

Timing Adjustment Method :

Screwdriver Slot

Switch Configuration :

SPDT

Rated control supply voltage at AC 60 Hz :

200 - 240

Type :

3RP2005-1AP30

Voltage - Supply :

200 ~ 240VAC, 24VAC/DC

Number of Contacts :

1

Manufacturer :

Siemens

Contact Rating @ Voltage :

3A @ 250VAC

RoHS-compliant :

yes

Mounting Type :

DIN Rail

Length :

57mm

Durability :

1000 0000
