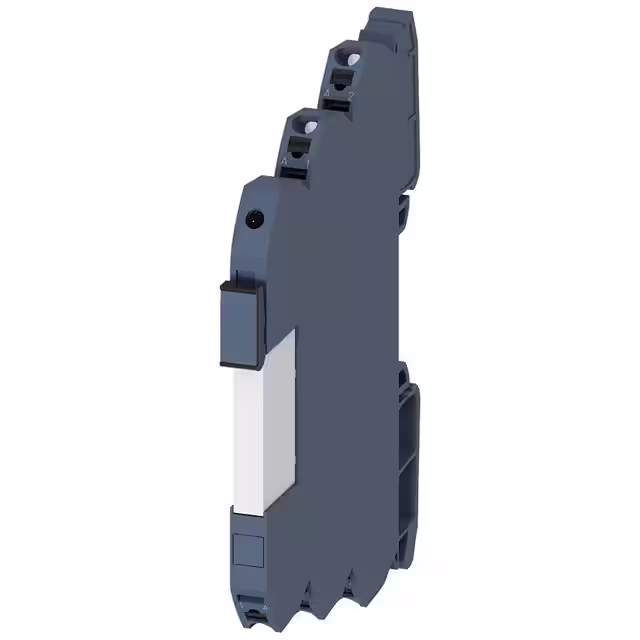

3RQ31182AE00

Manufacturer :

Siemens

Product Category :

Power Relays, Over 2 Amps

Electrical lifespan :

100000

Connection :

Spring-loaded connector

Input Current :

6A

Maximum Operating Temperature :

+60°C

Width :

6.2

Content :

5pc(s)

Operate Time :

8 ms

Mounting Type :

DIN Rail

Coil Type :

Non Latching

Features :

Lighted Indicator

Operating Temperature :

-25°C ~ 60°C

Dimensions :

6.2 x 93 x 76mm

Must Operate Voltage :

-

Max. temperature :

+60°C

Product Status :

Active

Coil Insulation :

-

Depth :

76mm

Type :

3RQ3118-2AE00

Height :

93mm

Length :

93mm

Operating Temperature Range :

-25 → +60°C

Termination Style :

Spring Terminal

Contact Form :

SPDT (1 Form C)

Min. temperature :

-25°C

Reach Compliance Code :

Unknown

Manufacturer :

Siemens

Series :

SIRIUS

Coil Voltage :

115VAC/DC

Seal Rating :

-

Fall time :

17ms

Release Time :

17 ms

Switching Voltage :

250VAC - Max

Relay Type :

GENERAL PURPOSE

Number of contacts as change-over contact :

1

RoHS-compliant :

yes

Base Product Number :

3RQ3118

Contact Rating (Current) :

3 A

Durability :

1.0E7

Must Release Voltage :

-

Dim :

(W x H x D) 6.2 x 93 x 76 mm

Contact Material :

Silver Tin Oxide (AgSnO)
