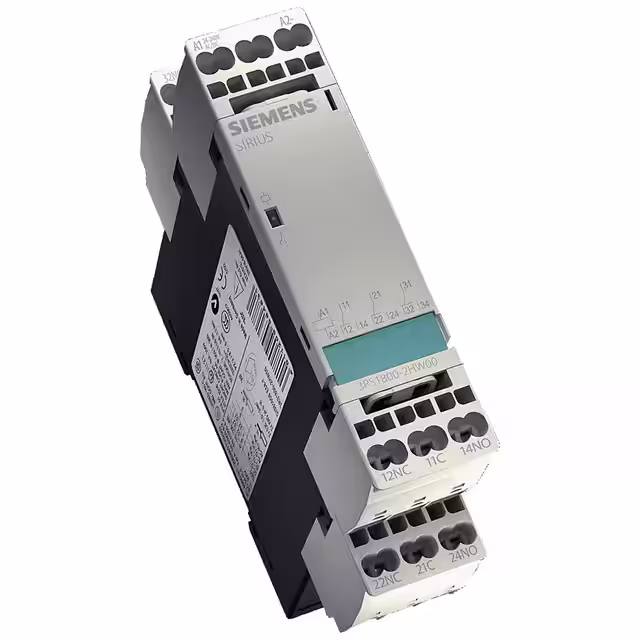

3RS1800-2HP00

Manufacturer :

Siemens

Product Category :

Power Relays, Over 2 Amps

Number of contacts as normally open contact :

0

Termination Style :

Spring Terminal

Must Release Voltage :

-

RoHS-compliant :

yes

Mounting Type :

DIN Rail

Operating Temperature :

-25°C ~ 60°C

Series :

SIRIUS 3RS18

Depth :

91mm

Type :

3RS1800-2HP00

Content :

1pc(s)

Package :

Box

Contact Material :

-

Product Status :

Active

Coil Insulation :

-

Dim :

(W x H x D) 22.5 x 103 x 91 mm

Width :

22.5

Manufacturer :

Siemens

Base Product Number :

3RS1800

Max. temperature :

+60°C

Relay Type :

GENERAL PURPOSE

Min. temperature :

-25°C

Height :

103mm

RoHS :

Non-Compliant

Contact Form :

3PDT (3 Form C)

Coil Type :

Non Latching

Number of contacts as change-over contact :

3

Contact Rating (Current) :

3 A

Connection :

Spring-loaded connector

Number of contacts as normally closed contact :

0

Coil Voltage :

24 ~ 240VAC

Seal Rating :

-

Must Operate Voltage :

-

Reach Compliance Code :

Unknown

Switching Voltage :

250VAC - Max

Features :

-
