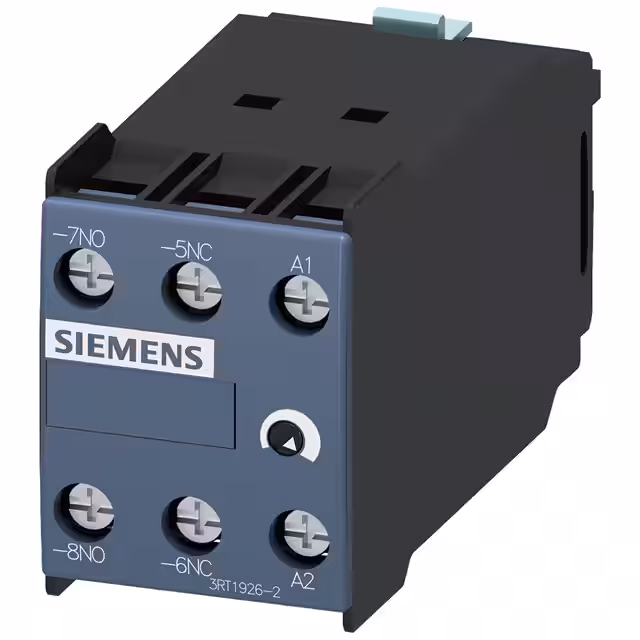

3RT1926-2ED21

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Delay Time :

0.05 Sec ~ 100 Sec

Series :

SIRIUS

Function :

On-Delay

Contact Rating @ Voltage :

-

Electrical lifespan :

100000

Depth :

73mm

Relay Type :

Solid State Relay

Number of contacts as change-over contact :

0

Base Product Number :

3RT1926

Voltage - Supply :

24 ~ 240VAC/DC

Mounting Type :

Panel Mount

Number of Contacts :

2

Dim :

(W x H x D) 33 x 46 x 73 mm

Package :

Box

Switch Configuration :

NO/NC

Max. operating voltage :

240V

Termination Style :

Screw Terminal

Type :

3RT1926-2ED21

Width :

33mm

Height :

46mm

Circuit :

DPST-NO (2 Form A)

Timing Adjustment Method :

Screwdriver Slot

Terminal Type :

Screw

Min. operating voltage :

200V

Max. temperature :

+60°C

Number of contacts as normally open contact :

0

Product Status :

Active

Operating principle :

Electronic

Durability :

1000 0000

Timing Initiate Method :

Input Voltage

Contact Configuration :

SPDT

Mode of Operation :

On Delay

Supply Voltage :

200 → 240V ac

Content :

1pc(s)

Number of contacts as normally closed contact :

0

Min. temperature :

-25°C
