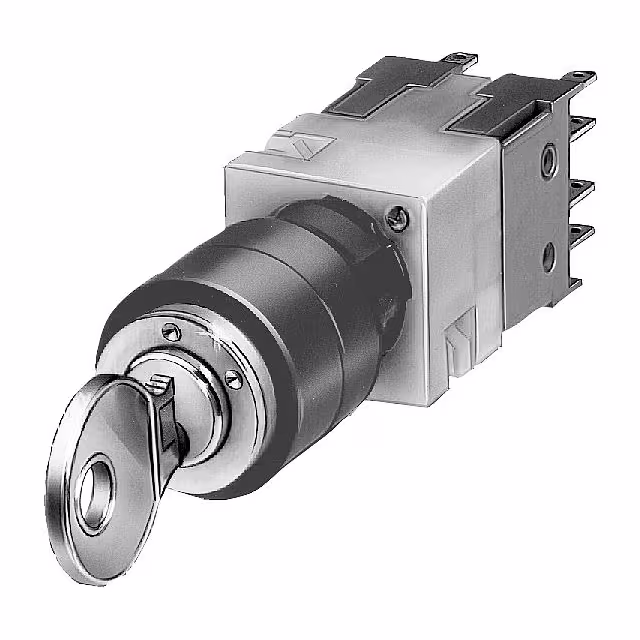

3SB2202-4LA01

Manufacturer :

Siemens

Product Category :

Maximum Operating Temperature :

+70°C

IP Rating :

IP65

Approval Agency :

CCC, CE, CSA, EAC, UL

Max Operating Temperature :

70 °C

Circuit :

SPST-NO

Contact Configuration :

1NO

Number of contacts as change-over contact :

0

Depth Behind Flange :

50.00mm

Features :

-

Body Material :

Plastic

RoHS :

Compliant

Illumination Voltage (Nominal) :

-

Switch Function :

Off-On

Voltage Rating - DC :

24 V

Contact Current Rating :

10 A

Electrical Life :

-

Base Product Number :

3SB2202

Voltage Rating - AC :

110 V

Degree of protection (IP) :

IP65

Number of contacts as normally open contact :

1

Illumination :

Non-Illuminated

Type of control element :

Other

With front ring :

No

Material front ring :

Plastic

With light source :

No

Type of electric connection :

Flat plug-in connection

Colour front ring :

Black

Termination :

Tab

Number of Positions :

2

Product Status :

Active

Min Operating Temperature :

-20 °C

Operating Temperature :

-25°C ~ 70°C

Minimum Operating Temperature :

-25°C

Housing Material :

Plastic

Type :

Standard

Illumination Type, Color :

-

Current Rating (Amps) :

10A (AC/DC)

Index Angle :

62 °

Mounting Type :

Panel Mount

Panel Cutout Dimensions :

Circular - 16.00mm Dia

Number of contacts as normally closed contact :

0

Operating Temperature Range :

-25 → +70°C

Ingress Protection :

IP65 - Dust Tight, Water Resistant

Termination Style :

Quick Connect

Ratings :

IP65

Mechanical Life :

300000
