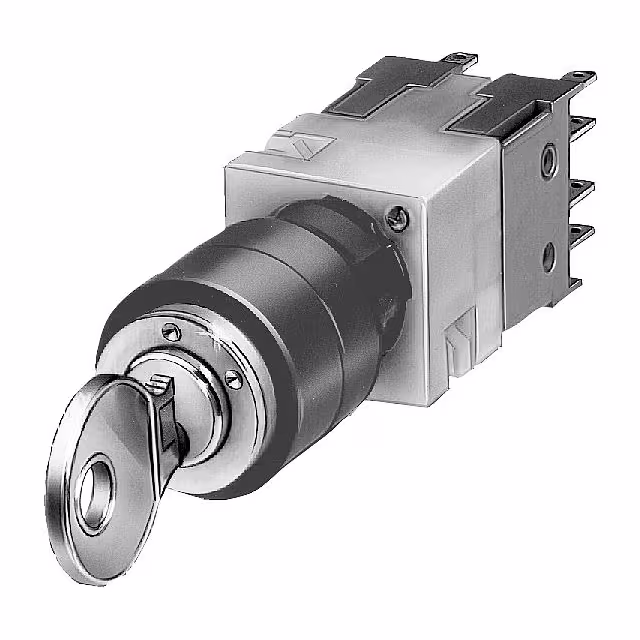

3SB2202-4LB01

Manufacturer :

Siemens

Product Category :

Current Rating (Amps) :

10A (AC/DC)

Circuit :

SPST-NO

Voltage Rating - AC :

110 V

Approval Agency :

CCC, CE, CSA, EAC, UL

Product Status :

Active

Mounting Type :

Panel Mount

Number of Positions :

2

Type of electric connection :

Flat plug-in connection

With front ring :

No

Number of contacts as normally closed contact :

0

Ingress Protection :

IP65 - Dust Tight, Water Resistant

Number of contacts as change-over contact :

0

Features :

-

Base Product Number :

3SB2202

Depth Behind Flange :

50.00mm

Illumination Voltage (Nominal) :

-

Series :

SIRIUS

Switch Function :

Off-On

With light source :

No

Mechanical Life :

300,000 Cycles

Panel Cutout Dimensions :

Circular - 16.00mm Dia

Operating Temperature :

-25°C ~ 70°C

Type :

Standard

Illumination :

Non-Illuminated

Voltage Rating - DC :

24 V

RoHS :

Non-Compliant

Material front ring :

Plastic

Termination Style :

Quick Connect

Degree of protection (IP) :

IP65

Package :

Box

Colour front ring :

Black

Number of contacts as normally open contact :

1

Type of control element :

Other

Electrical Life :

-

Illumination Type, Color :

-
